SF-HPM-B
Base product: T-ARMS

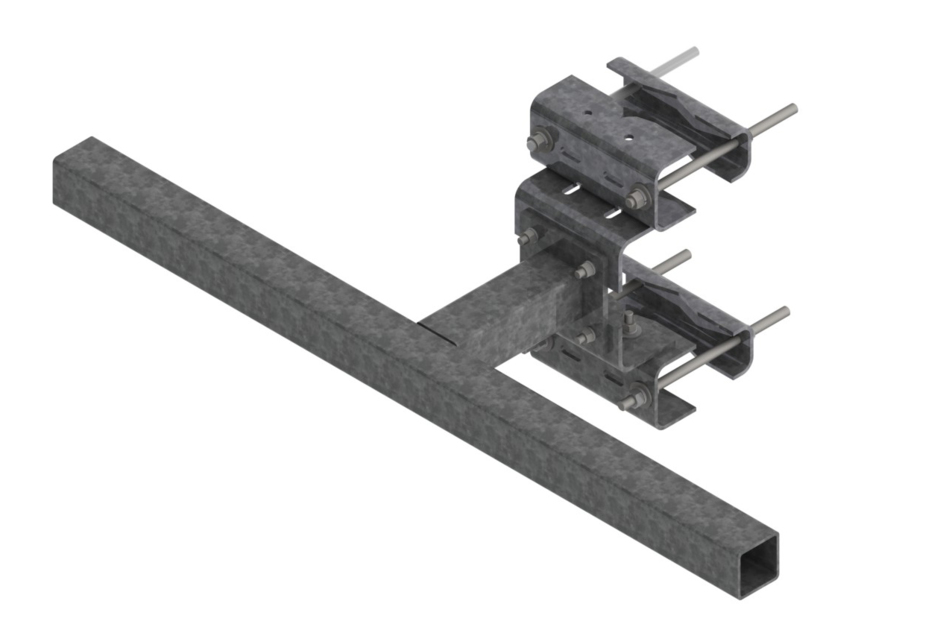

Heavy Duty Square T-Arm Base Kit, 2-7/8" OD pipe ordered separately
Specifications
Product classification
| Product Type | Co-location dual pipe mount kit |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 355.6 mm | 14 in |
| Face Width | 1.676 m | 5.5 ft |
| Width | 1676.4 mm | 66 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Stand-off Distance | 508 mm | 20 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Clamps | Frame | Pipe mounts | Saddle mounts |
| Packaging quantity | 1 |
| Weight, net | 63.412 kg | 139.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Co-location dual pipe mount kit |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 355.6 mm | 14 in |
| Face Width | 1.676 m | 5.5 ft |
| Width | 1676.4 mm | 66 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 38.100 mm | 1.5 in |
| Stand-off Distance | 508 mm | 20 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Clamps | Frame | Pipe mounts | Saddle mounts |
| Packaging quantity | 1 |
| Weight, net | 63.412 kg | 139.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
