TP-G312-DSH
Base product: TRIPOD-MOUNTS

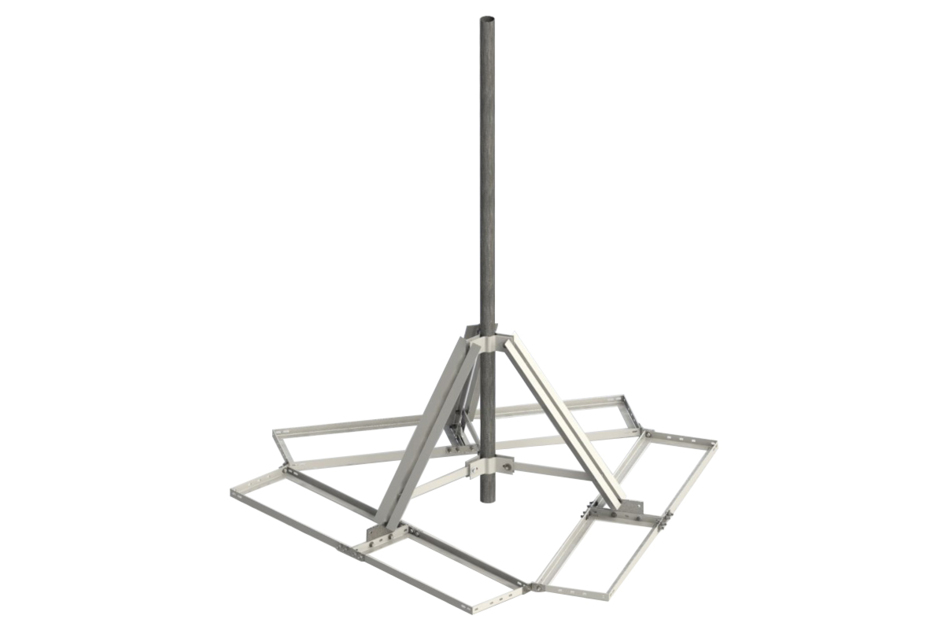

Tripod Mount Kit with Non-penetrating Ballast Mount, includes 3-1/2 in OD x 126 in Mount Pipe (88.9 mm OD x 3.2 m)
Specifications
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 2971.800 mm | 117 in |
| Length | 2.576 m | 8.45 ft |
| Pipe Length | 3200.4 mm | 126 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Ballast tray | Mounting hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 152.2 kg | 335.543 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
