PML-SU2-96

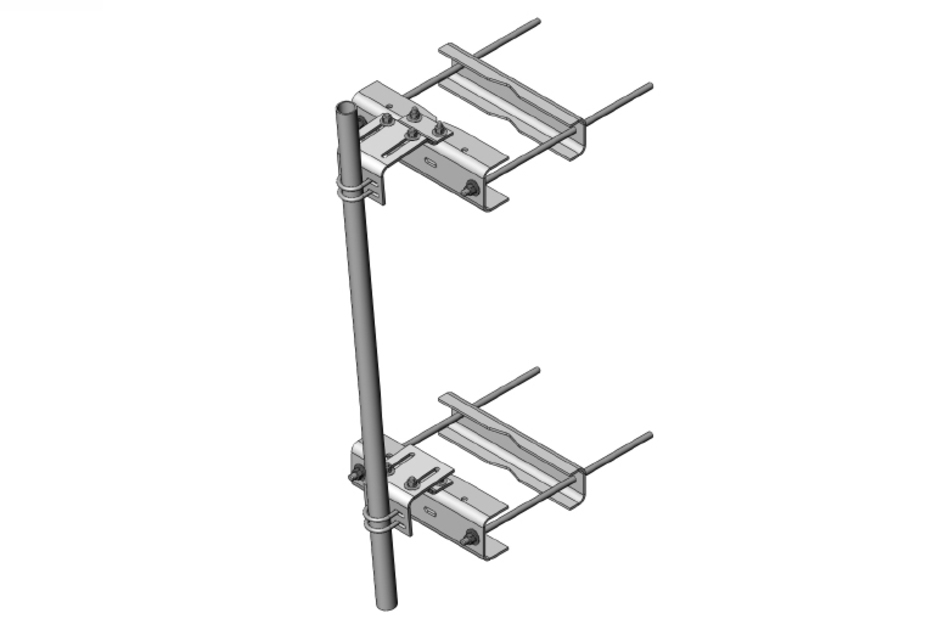

Large Leg Universal Sliding Pipe Mount Kit, 2-3/8 in OD x 96 in pipe
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 51.7 kg | 113.979 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 2438.4 mm | 96 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 51.7 kg | 113.979 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
