RM-DM-6
Base product: RING-MOUNTS

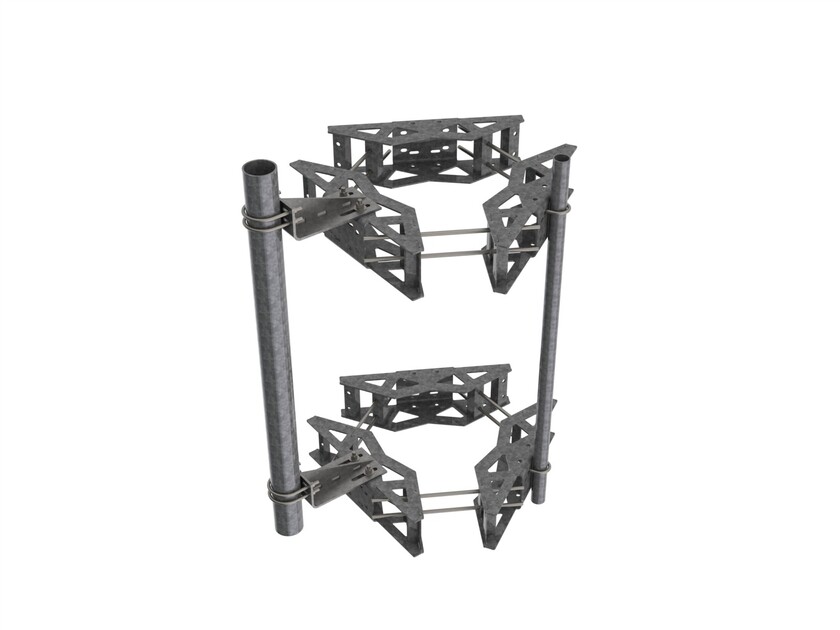

Dual Ring Mount kit for 6 ft Microwave Antenna
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 254–1270 mm (10–50 in) OD |
| Pipe, quantity | 1 |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 736.6 mm | 29 in |
| Length | 1600.2 mm | 63 in |
| Pipe Length | 1600.2 mm | 63 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
| Mounting Circumference, maximum | 3990.34 mm | 157.1 in |
| Mounting Circumference, minimum | 1196.34 mm | 47.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount | Pipe |
| Packaging quantity | 1 |
| Weight, net | 178.8 lb | 394.186 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Monopole, 254–1270 mm (10–50 in) OD |
| Pipe, quantity | 1 |
| Sectors, quantity | 1 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 736.6 mm | 29 in |
| Length | 1600.2 mm | 63 in |
| Pipe Length | 1600.2 mm | 63 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
| Mounting Circumference, maximum | 3990.34 mm | 157.1 in |
| Mounting Circumference, minimum | 1196.34 mm | 47.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount | Pipe |
| Packaging quantity | 1 |
| Weight, net | 178.8 lb | 394.186 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
