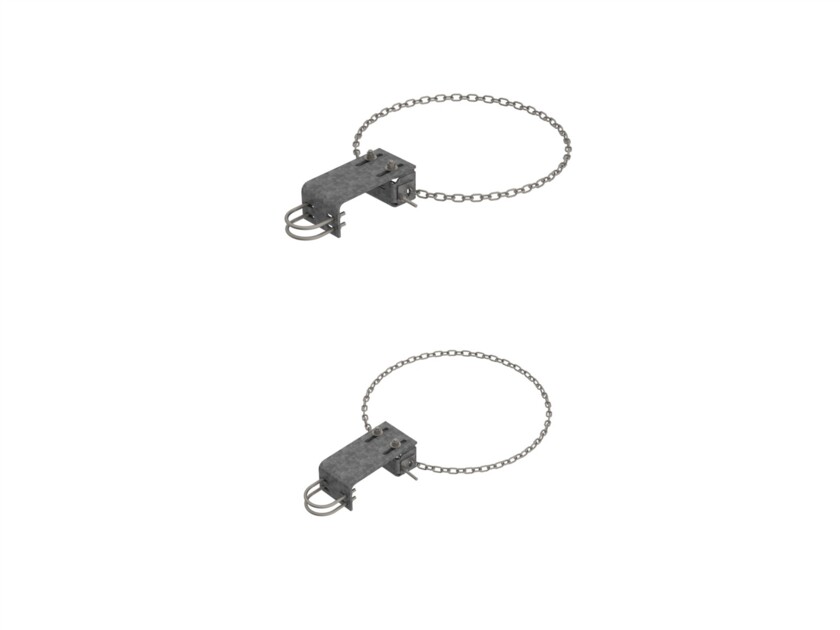

CML-L60-B
Light Duty Chain Mount Base Kit, 14 in stand-off, 16 ft chain (8" to 60" OD), Pipe ordered Separately.
Specifications
Product classification
| Product Type | Chain mount kit |
General specifications
| Chains, quantity | 2 |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 203.2 mm | 8 in |
| Length | 203.2 mm | 8 in |
| Chain Length | 4902.2 mm | 193 in |
| Mounting Diameter, maximum | 1524 mm | 60 in |
| Mounting Diameter, minimum | 203.2 mm | 8 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
| Mounting Circumference, maximum | 4775.2 mm | 188 in |
| Mounting Circumference, minimum | 635 mm | 25 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Criteria | One 96 in x 10 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Brackets | Chains | Hardware |
| Packaging quantity | 1 |
| Weight, net | 18.1 kg | 39.904 lb |
