F1B-HFBM-3M
Base product: F1B-PNMBM

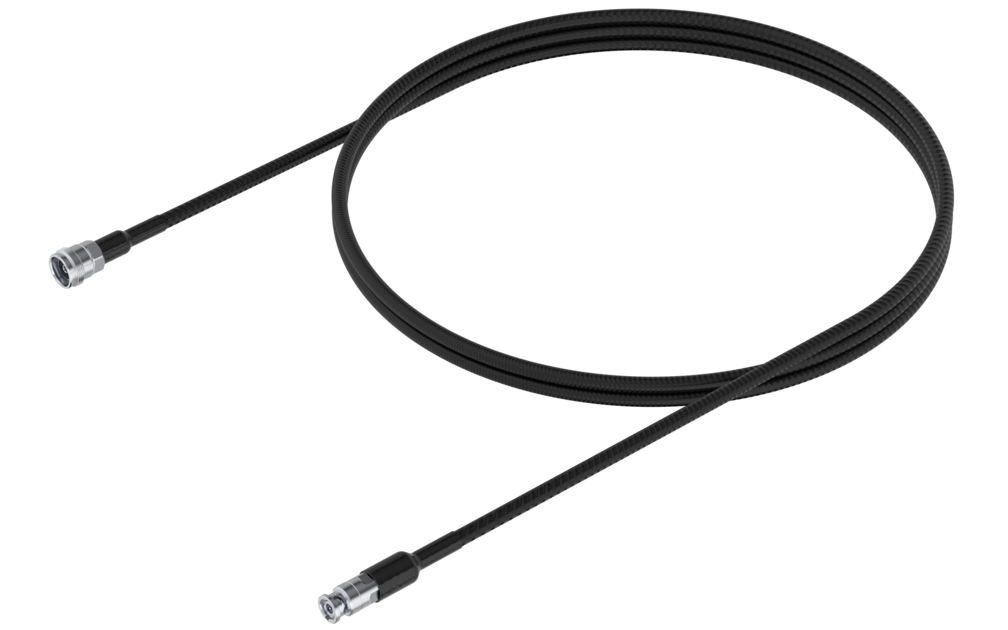

FSJ1-50A SureFlex® Jumper with interface types 4.3-10 Female and BNC Male, 3 m
Specifications
Product classification
| Product Type | SureFlex® standard |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Female |
| Interface, Connector B | BNC Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 3 m | 9.843 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 700–3000 MHz | 1.288 | 18.00 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | SureFlex® standard |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Female |
| Interface, Connector B | BNC Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 3 m | 9.843 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 700–3000 MHz | 1.288 | 18.00 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
