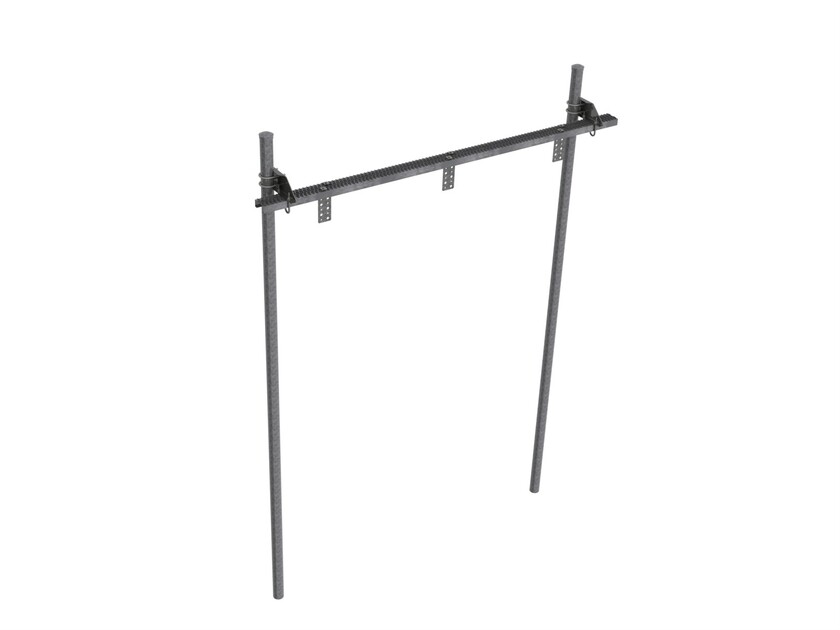

WB-K0510-B
Saftey Grated Waveguide Bridge Kit, 4-3/4 in x 10 ft, with two 13 ft 4 in direct bural posts
Specifications
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Direct burial |
| Cable Runs, quantity | 6 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 127 mm | 5 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4053.84 mm | 159.6 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 114.6 kg | 252.649 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Direct burial |
| Cable Runs, quantity | 6 |
| Pipe, quantity | 2 |
Dimensions
| Height | 4064 mm | 160 in |
| Width | 127 mm | 5 in |
| Length | 3048 mm | 120 in |
| Pipe Length | 4053.84 mm | 159.6 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 114.6 kg | 252.649 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
