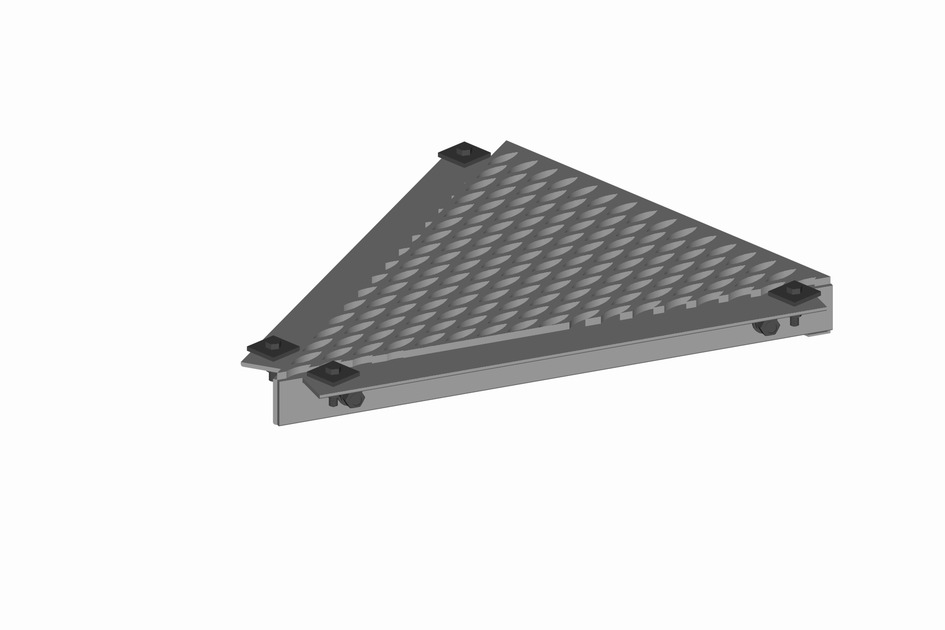

WB-CF45
Waveguide Bridge Corner Filler, 45°
Specifications
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Waveguide bridge kit |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 609.6 mm | 24 in |
| Length | 609.6 mm | 24 in |

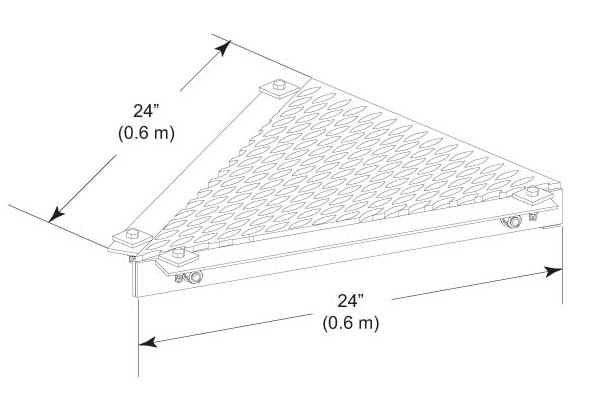

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner modules | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 14.5 kg | 31.967 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Waveguide bridge kit, 24 in |
| Mounting | Waveguide bridge kit |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 609.6 mm | 24 in |
| Length | 609.6 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner modules | Mounting hardware |
| Packaging quantity | 1 |
| Weight, net | 14.5 kg | 31.967 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
