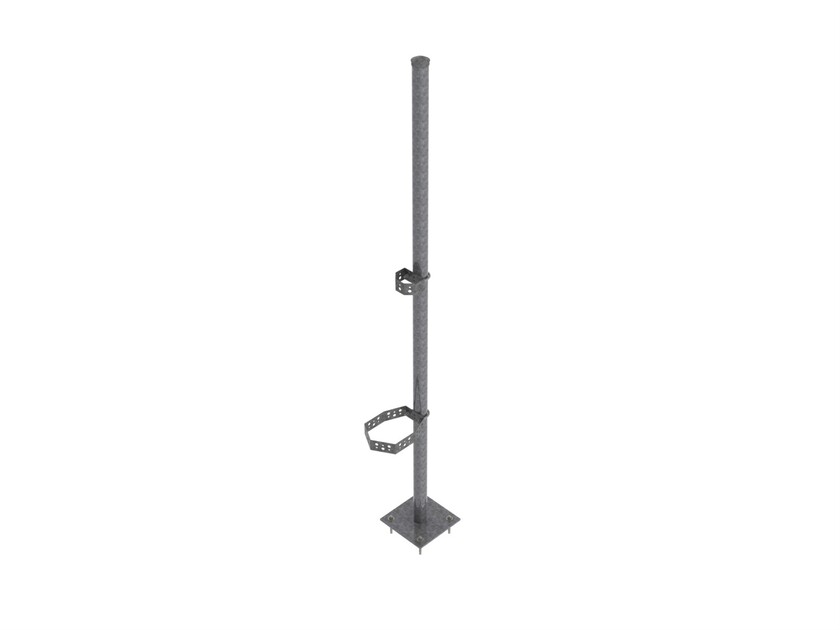

RR-BSP-10
Base Shoe Pipe, 3-1/2 in x 126 in, with 14-1/2 in x 14-1/2 in base plate
Specifications
Product classification
| Product Type | Pipe column |
General specifications
| Application | Base shoe |
| Mounting | Waveguide bridge support bracket |
| Pipe, quantity | 1 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 368.3 mm | 14.5 in |
| Length | 368.3 mm | 14.5 in |
| Pipe Length | 3200.4 mm | 126 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Anchors | Caps | Pipe |
| Packaging quantity | 1 |
| Weight, net | 53.1 kg | 117.065 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
