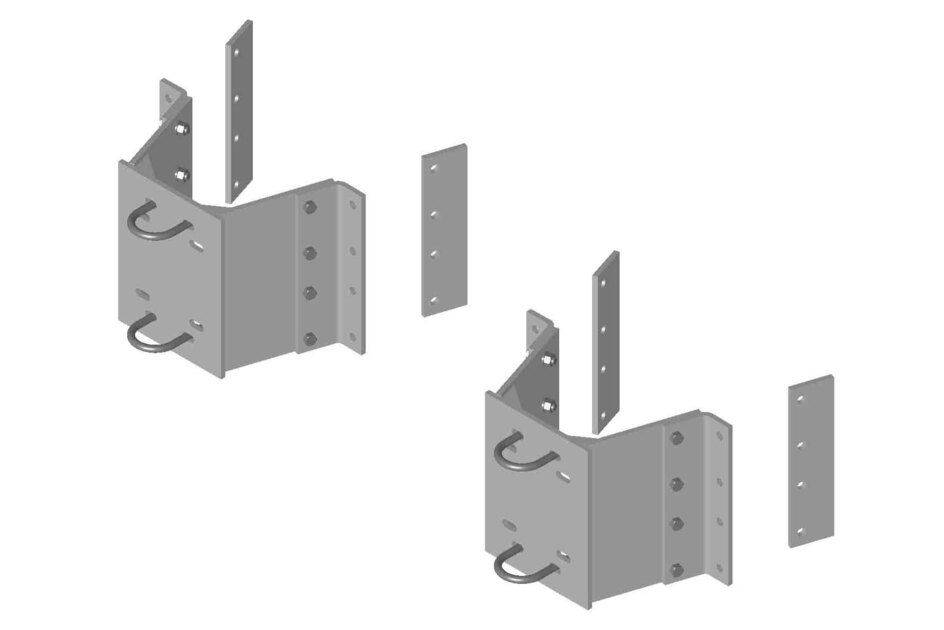

WT-MSM2-B
Mid-span Mount for 2-3/8 in OD mounting pipe, plain end pipe not included
Specifications
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Pod Leg |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 304.8 mm | 12 in |
| Length | 355.6 mm | 14 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 11.385 kg | 25.1 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Water tower mount |
General specifications
| Mounting | Pod Leg |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 304.8 mm | 12 in |
| Length | 355.6 mm | 14 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 11.385 kg | 25.1 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
