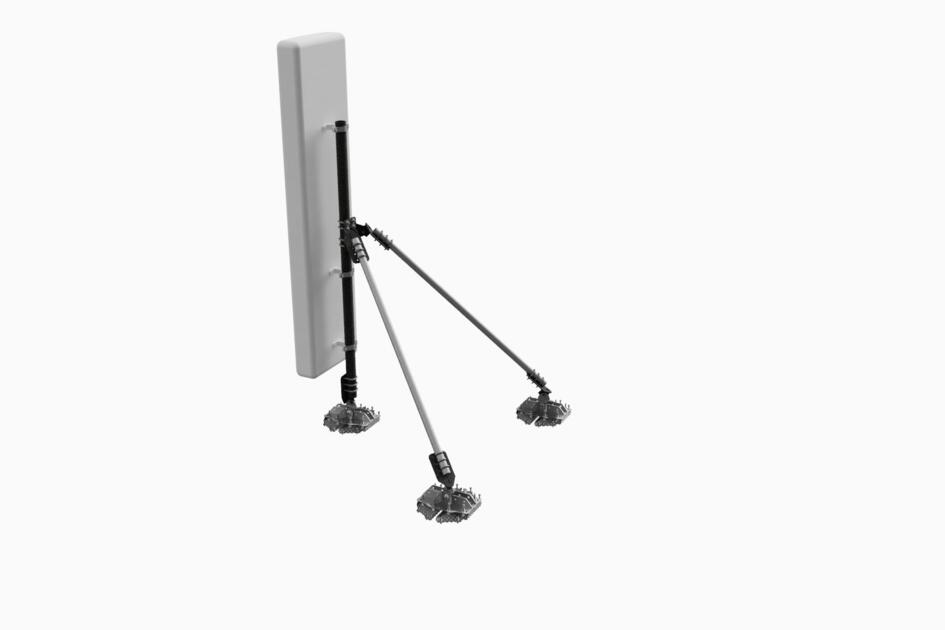

MAGPOD-170-FLT
Modular Magnetic Tripod Assembly with (1) 3 1/2in OD antenna mast pipe and (2) 2 3/8 in OD kicker pipes, uses (3) MAGFOOT-170-FLT as base.
Specifications
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
| Sectors, quantity | 1 |
Dimensions
| Height | 213.360 mm | 8.4 in |
| Width | 456.946 mm | 17.99 in |
| Length | 521.208 mm | 20.52 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 29.819 kg | 65.74 lb |
Product classification
| Product Type | Magnetic mount |
| Product Brand | Estech Magnetics |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Water tower surface |
| Sectors, quantity | 1 |
Dimensions
| Height | 213.360 mm | 8.4 in |
| Width | 456.946 mm | 17.99 in |
| Length | 521.208 mm | 20.52 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 29.819 kg | 65.74 lb |
