DM-300
Stand-Off Wall Mount for solid and hollow wall, 36 in
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in | 114.3 mm | 4.5 in |
| Stand-off Distance | 914.4 mm | 36 in |

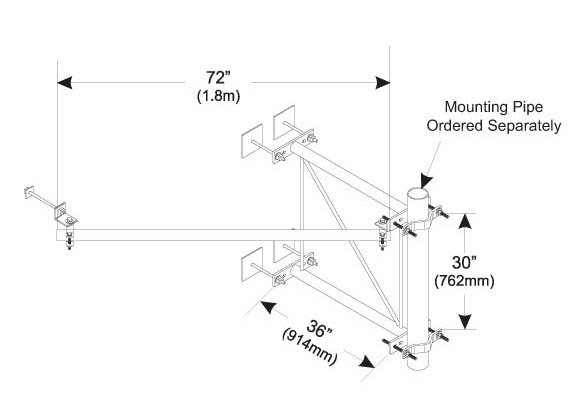

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Stiff arm | Wall mount hardware |
| Packaging quantity | 1 |
| Weight, net | 68.4 kg | 150.796 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Wall mount kit |
General specifications
| Mounting | Walls |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 76.2 mm | 3 in |
| Length | 914.4 mm | 36 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in | 114.3 mm | 4.5 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Brackets | Stiff arm | Wall mount hardware |
| Packaging quantity | 1 |
| Weight, net | 68.4 kg | 150.796 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
