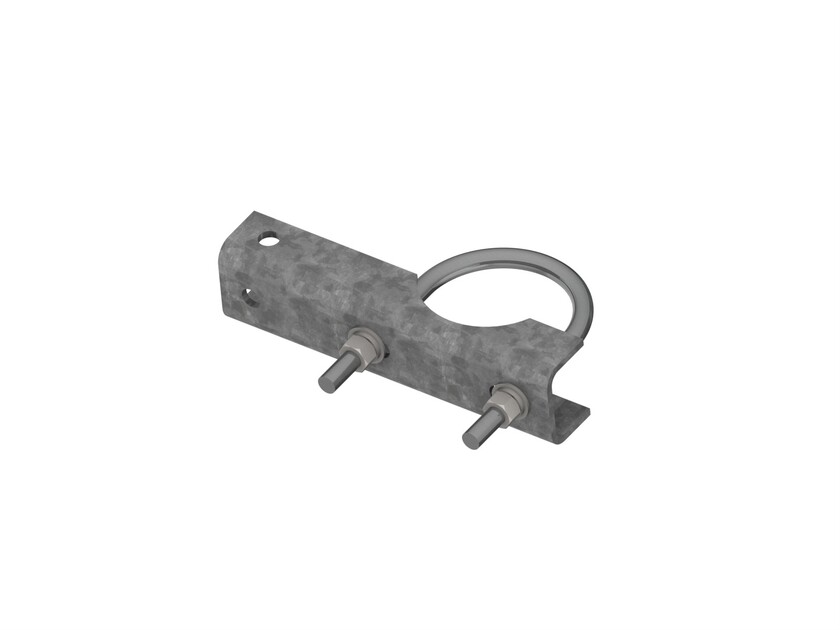

TF-MSS-BK45
Stiff Arm Support Bracket for 4–1/2 in OD pipe
Specifications
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 152.4 mm | 6 in |
| Width | 76.2 mm | 3 in |
| Length | 76.2 mm | 3 in |
| Mounting Diameter, maximum | 114.3 mm | 4.5 in |
| Mounting Diameter, minimum | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp | U-bolt |
| Packaging quantity | 1 |
| Weight, net | 2.8 kg | 6.173 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
