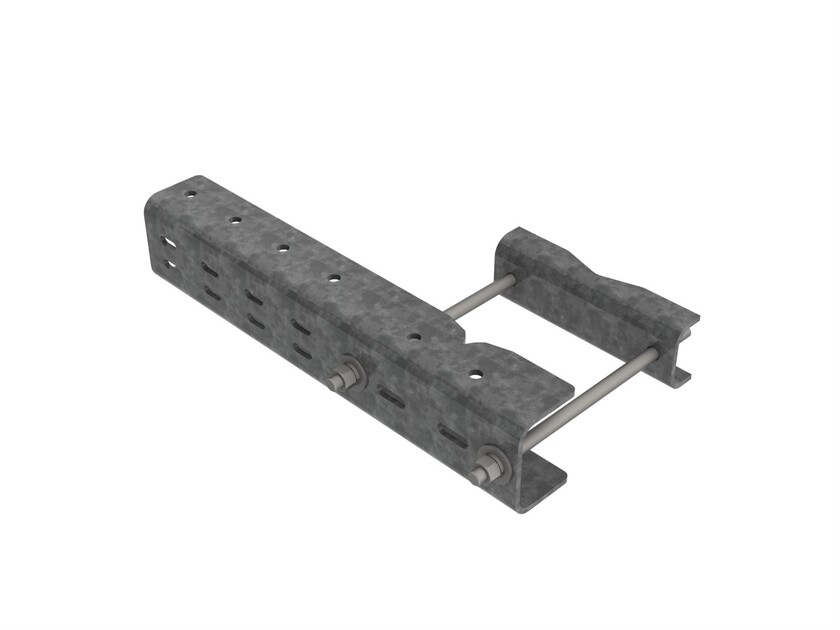

MD-VSS-B
Vertical Microwave Antenna Strut Support Kit
Specifications
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 20.4 kg | 44.974 lb |
Product classification
| Product Type | Microwave strut support |
General specifications
| Mounting | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 203.2 mm | 8 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment hardware | Clamps |
| Packaging quantity | 1 |
| Weight, net | 20.4 kg | 44.974 lb |
