TP-G300-B
Base product: TRIPOD-MOUNTS

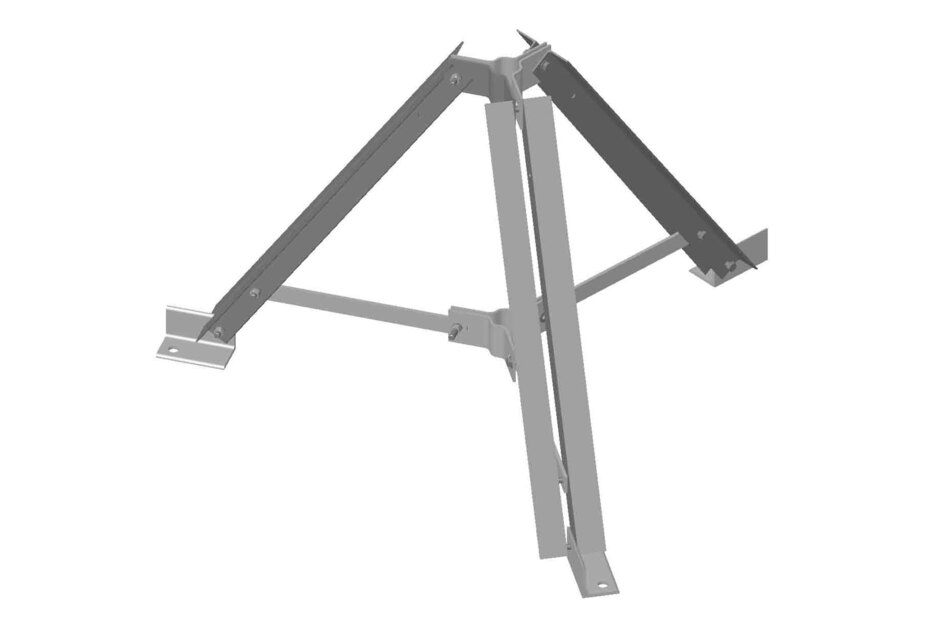

Universal Tripod Base Kit for 2-7/8 in - 3-1/2 in OD pipes
Specifications
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating | Surfaces |
| Pipe, quantity | 0 |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 1524 mm | 60 in |
| Length | 1.524 m | 5 ft |
| Pipe Length | 0.000 mm | 0 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 85 mph (BWS) at 100 ft AGL using Exposure C per UBC |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount, with or without pipe |
| Packaging quantity | 1 |
| Weight, net | 51.8 kg | 114.199 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Tripod mount |
General specifications
| Mounting | Non-penetrating | Surfaces |
| Pipe, quantity | 0 |
Dimensions
| Height | 838.2 mm | 33 in |
| Width | 1524 mm | 60 in |
| Length | 1.524 m | 5 ft |
| Pipe Length | 0.000 mm | 0 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 85 mph (BWS) at 100 ft AGL using Exposure C per UBC |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Mount, with or without pipe |
| Packaging quantity | 1 |
| Weight, net | 51.8 kg | 114.199 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
