RR-TFS3
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

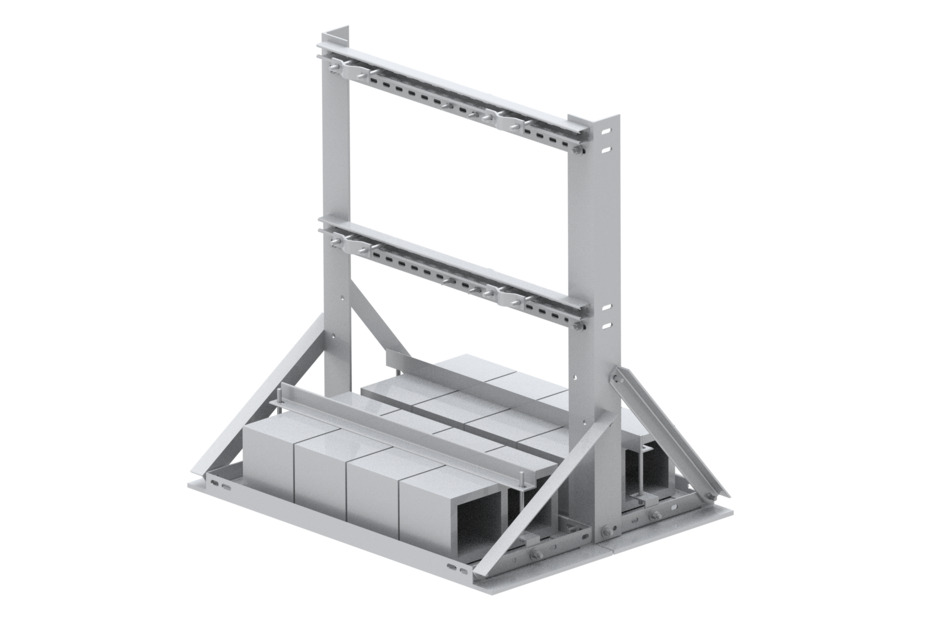

Non-Penetrating Ballast Frame for RRUs with 3 Mounting Pipe Locations
Specifications
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 1219.2 mm | 48 in |
| Face Width | 1.067 m | 3.5 ft |
| Width | 1079.500 mm | 42.5 in |
| Length | 0.213 m | 0.7 ft |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
| Weight, net | 93.83 kg | 206.859 lb |
Product classification
| Product Type | Non-penetrating roof frame |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 0 |
Dimensions
| Height | 1219.2 mm | 48 in |
| Face Width | 1.067 m | 3.5 ft |
| Width | 1079.500 mm | 42.5 in |
| Length | 0.213 m | 0.7 ft |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Frame | Hardware |
| Packaging quantity | 1 |
| Weight, net | 93.83 kg | 206.859 lb |
