RF-PM86
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

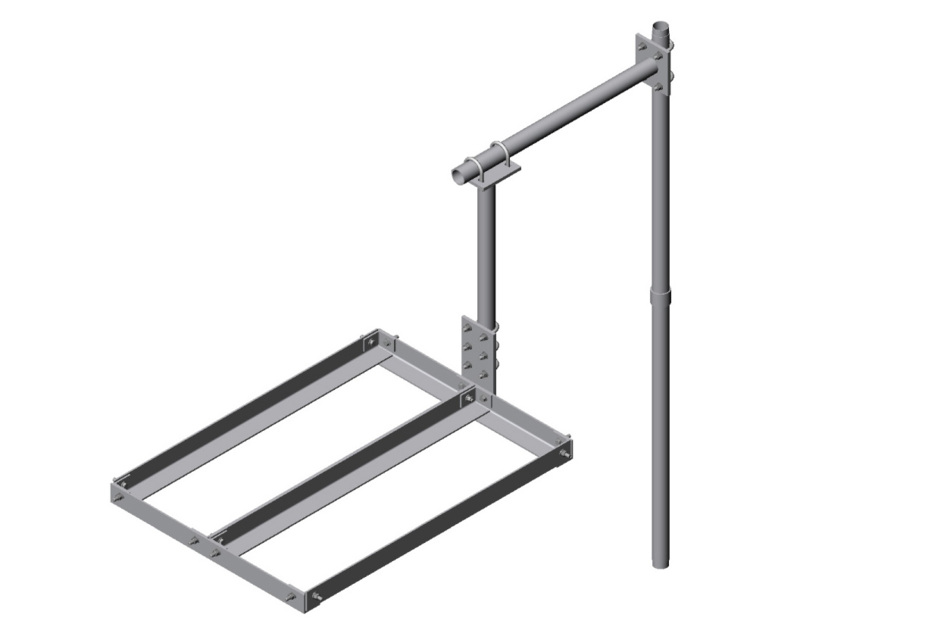

Non-Penetrating Parapet Roof Mount, 2-3/8 in OD x 86 in adjustable pipe
Specifications
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 2184.4 mm | 86 in |
| Width | 914.4 mm | 36 in |
| Length | 1.25 m | 4.1 ft |
| Pipe Length | 2184.4 mm | 86 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |

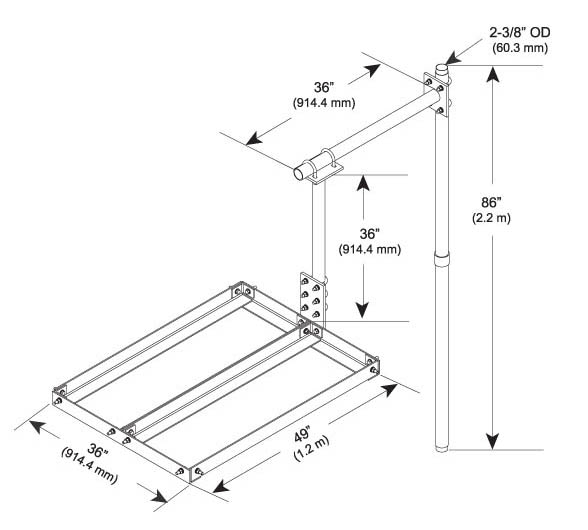

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Aluminum |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 33 kg | 72.752 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Rooftop mount |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 2184.4 mm | 86 in |
| Width | 914.4 mm | 36 in |
| Length | 1.25 m | 4.1 ft |
| Pipe Length | 2184.4 mm | 86 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Aluminum |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 33 kg | 72.752 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
