MTC37319
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

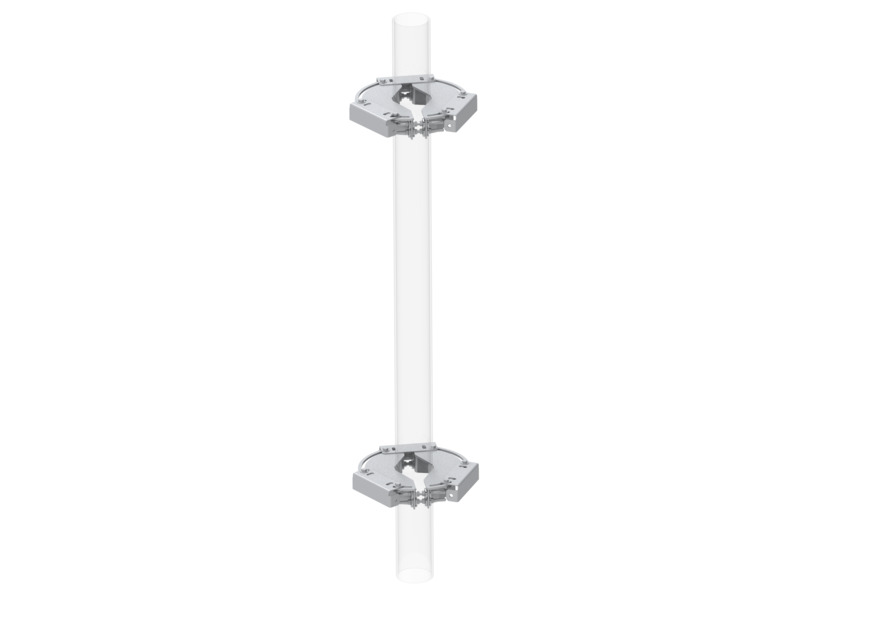

Universal Antenna Mount with Non-std Azimuth for Concealment, Tripod, and Flagpole applications. Mounts to Poles 3.5" to 6.625" OD
Specifications
Product classification
| Product Type | Tripod mount component |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Mounting | Round member |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Mounting Diameter, maximum | 168.275 mm | 6.625 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Threaded rod |
| Packaging quantity | 1 |
| Weight, net | 43.6 kg | 96.121 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
