760263897-20
Base product: TRIPOD-MOUNTS

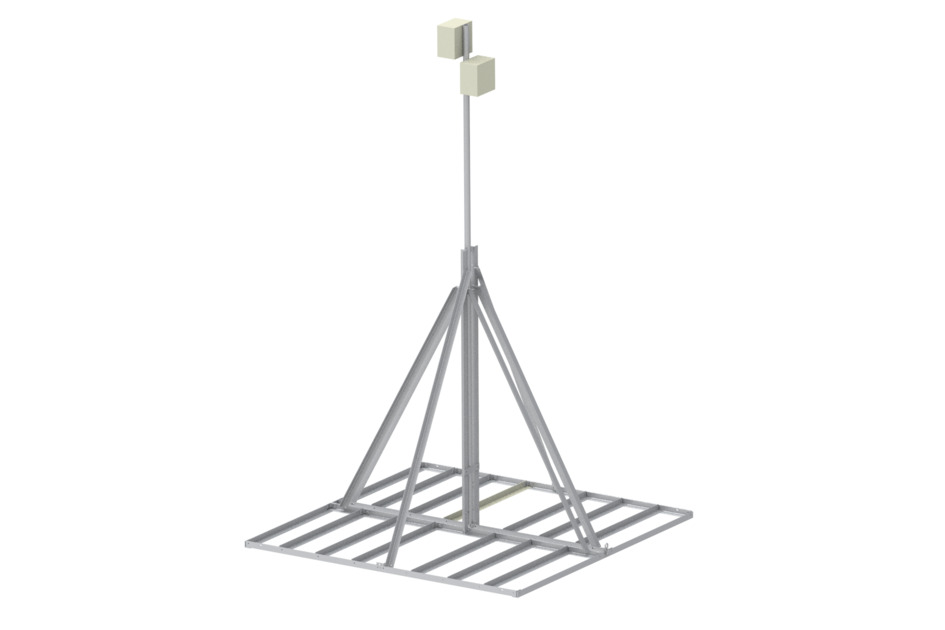

Non-Penetrating Swivel Mast Roof Mount with Ballast Tray, 2-7/8 in x 240 in pipe included
Specifications
Product classification
| Product Type | Tripod mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 6096.000 mm | 240 in |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 6096.000 mm | 240 in |
| Pipe Outer Diameter | 73.660 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Ballast tray | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 768.86 kg | 1695.044 lb |
Product classification
| Product Type | Tripod mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Non-penetrating |
| Pipe, quantity | 1 |
Dimensions
| Height | 6096.000 mm | 240 in |
| Width | 3810.000 mm | 150 in |
| Pipe Length | 6096.000 mm | 240 in |
| Pipe Outer Diameter | 73.660 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Ballast tray | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 768.86 kg | 1695.044 lb |
