RR-APEX4 | APEX RRU MOUNT

Base product: RRU-MOUNTS

Apex RRU Mount for up to 4 Radios - Mounts to Extended Spine on G2RHDX & RHDXL Series Mounts

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

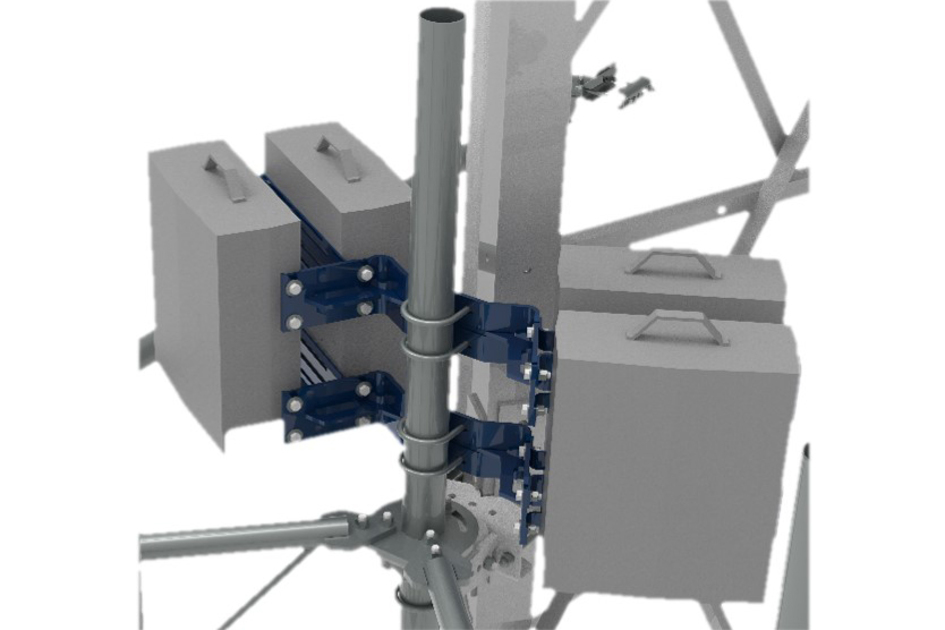

RR-APEX4 with Radios

Features and benefits

Designed for G2 RHDX Series Mounts with Extended Spine
- Increased versatility and stability
- More RRU mounting available, reducing need for additional
mounts
- Better load management and Less structure stress
- Angled RRU brackets for stronger, more versatile mounting
- Decreased PIM from radio relocation (pulls radio from near
field)
- Decreased antenna pipe loading
- Compatible with towers and monopoles
- Fits 2-3/8" to 4-1/2" OD Pipes

Specifications

Product classification

Product Type	Remote radio head unit mount
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Mounting

Pipe, 88.9 mm (3-1/2 in) OD

Dimensions

Height	381.000 mm \| 15 in
Length	1320.800 mm \| 52 in
Compatible Diameter	88.900 mm \| 3.5 in
Mounting Diameter, maximum	114.300 mm \| 4.5 in
Mounting Diameter, minimum	60.325 mm \| 2.375 in

Material specifications

Material Type

Hot dip galvanized steel

Mechanical specifications

Wind Rating

For Specifications, please contact your local ANDREW representative

Packaging and weights

Included	Clamps \| Hardware
Packaging quantity	2
Weight, net	38.102 kg \| 84 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
