MTC4113 | CORE RRU MOUNT
Base product: RRU-MOUNTS

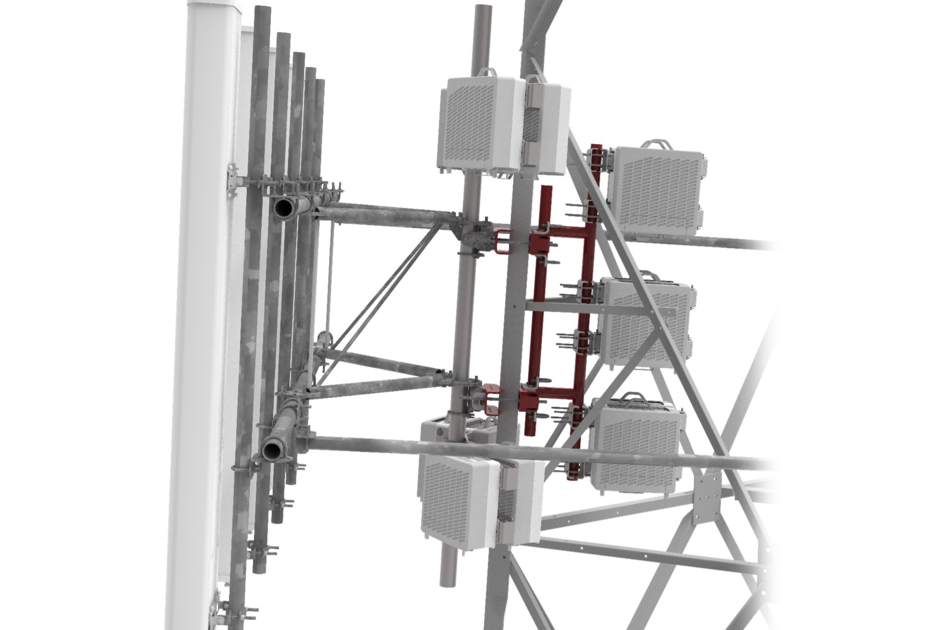

Core RRU Mount with 24" Stand-off - Mounts to Spine on G2 Series Mounts
Features and benefits
Designed for G2 Series Mounts with or Without Extended Spine
• Internal tower RRU mount
• Decreased PIM from radio relocation
• Increased mount stability
• Decreased face loading
• Increased mount versatility without the need for a new RRU
mount
NOTE: Requires use of RR-FA2 RRU brackets
• Internal tower RRU mount
• Decreased PIM from radio relocation
• Increased mount stability
• Decreased face loading
• Increased mount versatility without the need for a new RRU
mount
NOTE: Requires use of RR-FA2 RRU brackets
Specifications
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 3048.000 mm | 120 in |
| Length | 419.100 mm | 16.5 in |
| Compatible Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
| Stand-off Distance | 609.600 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Clamps | Hardware | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 55.148 kg | 121.58 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Remote radio head unit mount |
General specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
Dimensions
| Height | 3048.000 mm | 120 in |
| Length | 419.100 mm | 16.5 in |
| Compatible Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 88.900 mm | 3.5 in |
| Mounting Diameter, minimum | 88.900 mm | 3.5 in |
| Stand-off Distance | 609.600 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Clamps | Hardware | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 55.148 kg | 121.58 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
