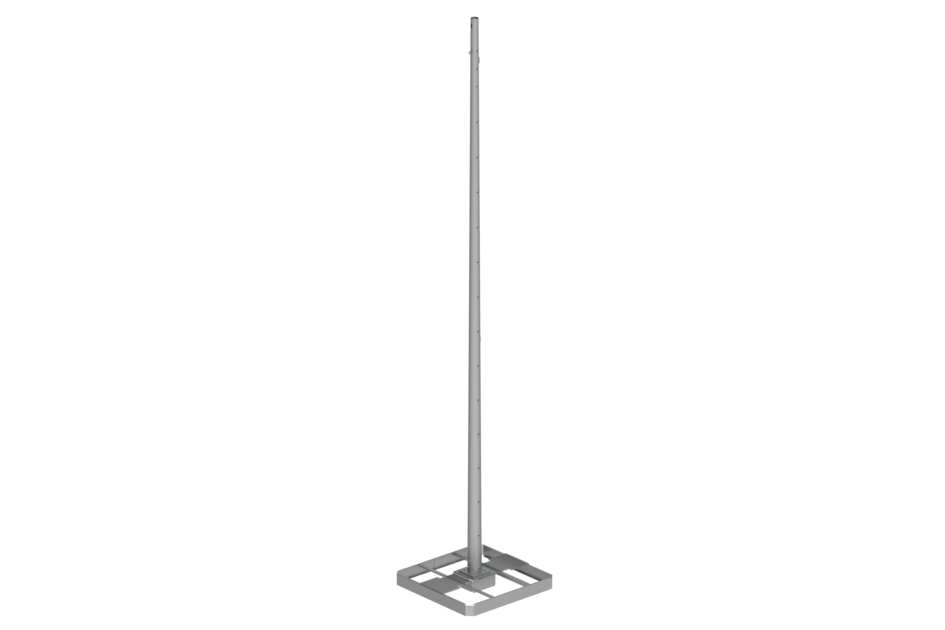

ST-BSP60
Ballast Pole, 60 ft
Features and benefits
- Bolt-together ballast tray foundation
- No digging required
- Removable step pegs
- Collar mounting
Specifications
Product classification
| Product Type | Monopole |
General specifications
| Application | Multi-point telecommunications | Point-to-point communications |
| Equipment Load Rating | 18 in microwave reflector | Omni antenna | Telecommunications unit |
| Foundation | Non-penetrating above ground design with aggregate fill |
| Monopole Capability Type | Medium duty |
| Monopole Design | Round conical |
| Optional Accessories | Antenna mounts | Cabinet mounts | Removable step pegs | Solar mounts |
Dimensions
| Height | 18.288 m | 60 ft |
| Mounting Diameter, maximum | 304.8 mm | 12 in |
| Mounting Diameter, minimum | 101.6 mm | 4 in |
| Base Area | 8 ft x 8 ft |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Ballast tray | Ground tab | Hand holes | Lightning rod | Monopole | Safety climb systems | Safety-climb | Step pegs |
| Packaging quantity | 1 |
| Weight, net | 517.5 kg | 1140.891 lb |
