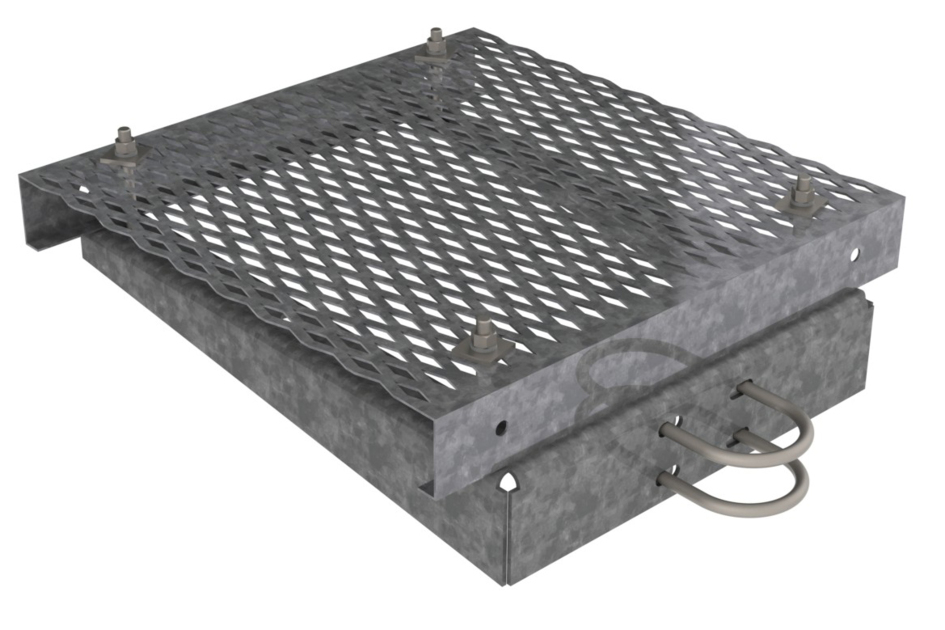

RR-IS24
RRU Ice Shield, 24 in x 24 in
Specifications
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 609.6 mm | 24 in |
| Width | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Ice shield |
| Weight, net | 16.4 kg | 36.156 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Ice canopies and shields |
General specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
| Pipe, quantity | 1 |
Dimensions
| Height | 609.6 mm | 24 in |
| Width | 609.6 mm | 24 in |
| Length | 304.8 mm | 12 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Ice shield |
| Weight, net | 16.4 kg | 36.156 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
