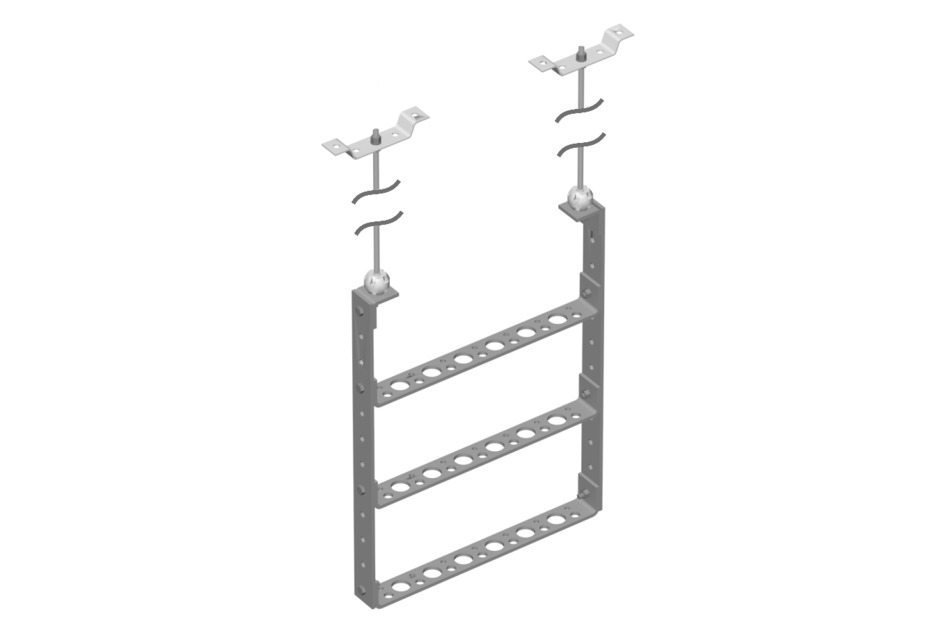

AT-K306-U
Arrestor Trapeze Kit for 7-16 DIN, type N, or bolt-grounded surge arrestors, 3-tier, 6-hole pattern
Specifications
Product classification
| Product Type | Arrestor trapeze kit |
General specifications
| Mounting | Ceiling | Walls |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 457.2 mm | 18 in |
| Length | 1219.2 mm | 48 in |
| Material Thickness | 7.62 mm | 0.3 in |

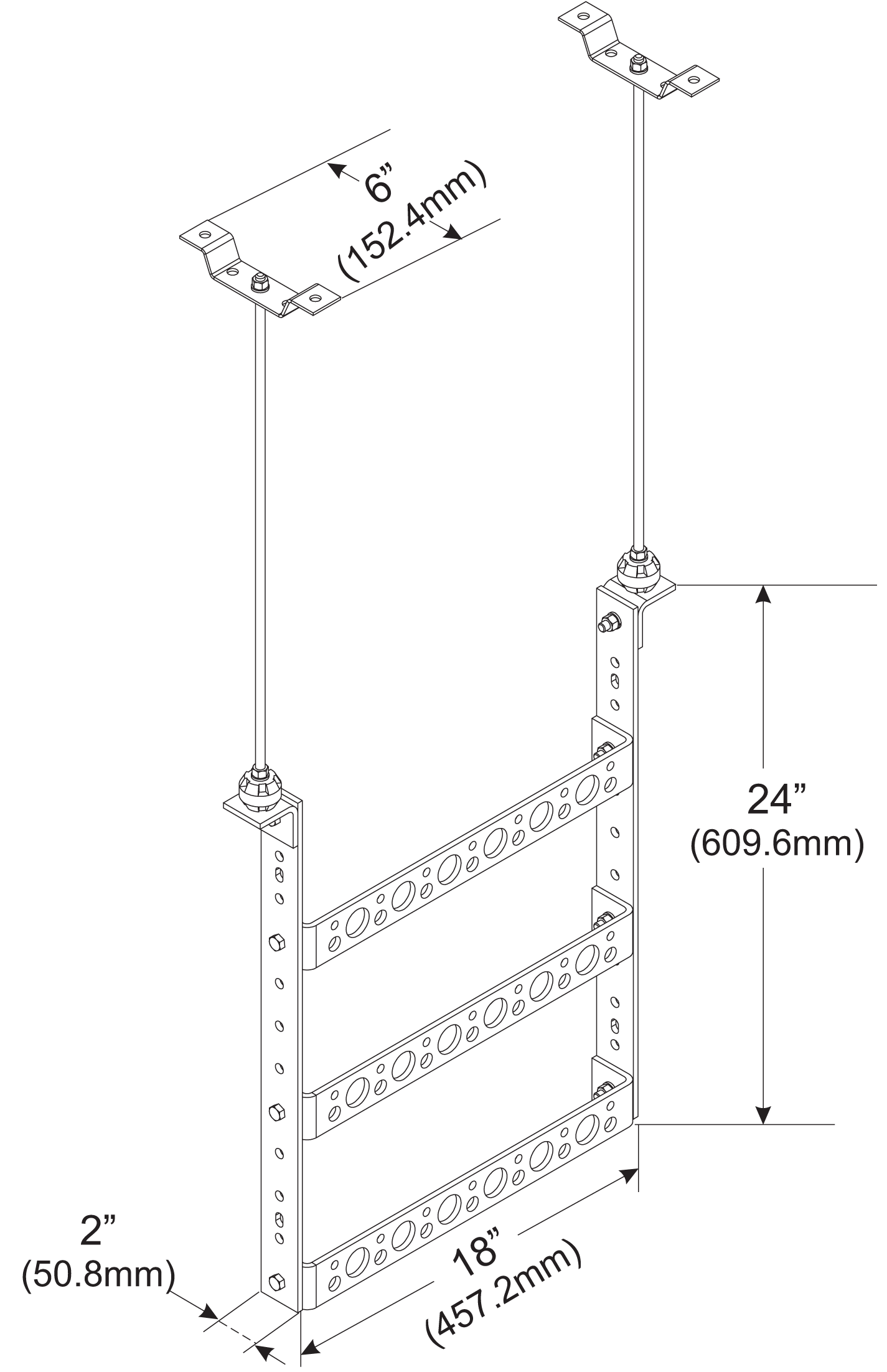

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Copper |
Packaging and weights
| Included | Ceiling brackets | Threaded rod | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 9.7 kg | 21.385 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Arrestor trapeze kit |
General specifications
| Mounting | Ceiling | Walls |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 457.2 mm | 18 in |
| Length | 1219.2 mm | 48 in |
| Material Thickness | 7.62 mm | 0.3 in |
Material specifications
| Material Type | Copper |
Packaging and weights
| Included | Ceiling brackets | Threaded rod | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 9.7 kg | 21.385 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
