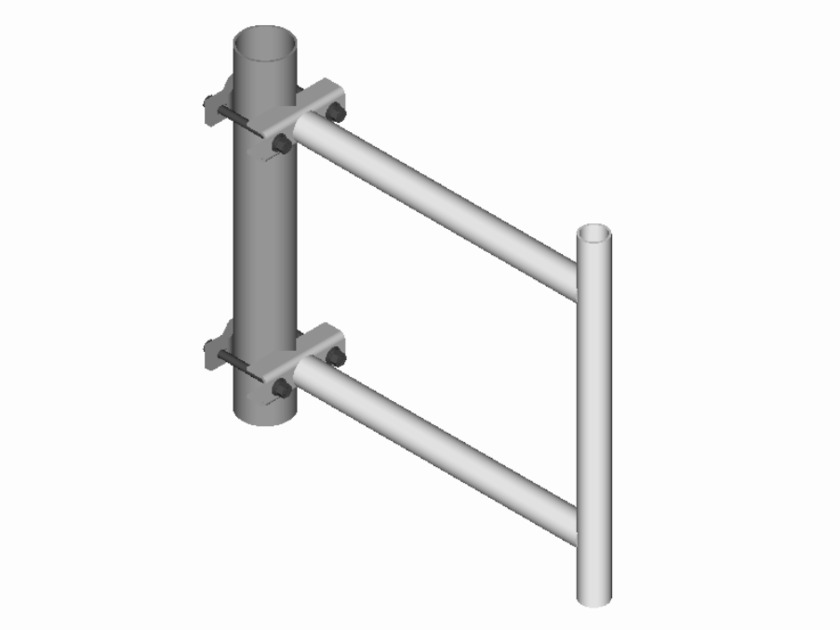

S-400

Stand-Off Bracket, 48 in, includes pipe

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 812.8 mm | 32 in
Width 127 mm | 5 in
Length 1219.2 mm | 48 in
Pipe Length 812.8 mm | 32 in
Stand-off Distance 1219.2 mm | 48 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 26.27 kg | 57.915 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Stand-off mount

General specifications

Mounting Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included
Pipe, quantity 1
Tower Taper Non-tapered | Tapered

Dimensions

Height 812.8 mm | 32 in
Width 127 mm | 5 in
Length 1219.2 mm | 48 in
Pipe Length 812.8 mm | 32 in
Stand-off Distance 1219.2 mm | 48 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating Test Method TIA/EIA-222

Packaging and weights

Included Clamps | Stand-off
Packaging quantity 1
Weight, net 26.27 kg | 57.915 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
