RR-DPM

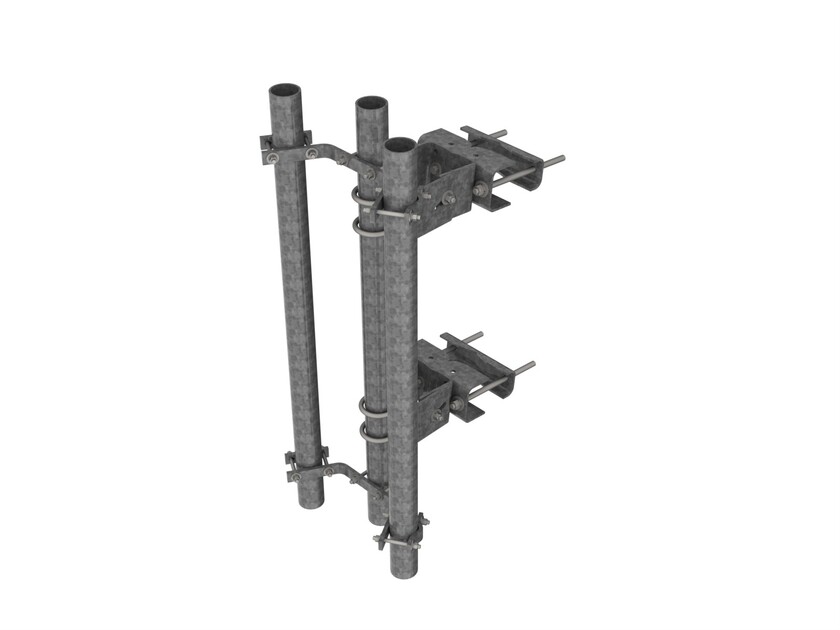

Universal Open Pipe Mount Kit for straight or tapered legs
Specifications
Product classification
| Product Type | Pipe mount | Remote radio head unit mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 457.2 mm | 18 in |
| Length | 457.2 mm | 18 in |
| Pipe Length | 1524 mm | 60 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 109.2 kg | 240.745 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe mount | Remote radio head unit mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Tapered |
Dimensions
| Height | 1524 mm | 60 in |
| Width | 457.2 mm | 18 in |
| Length | 457.2 mm | 18 in |
| Pipe Length | 1524 mm | 60 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Brackets | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 109.2 kg | 240.745 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
