PML-SC2-B

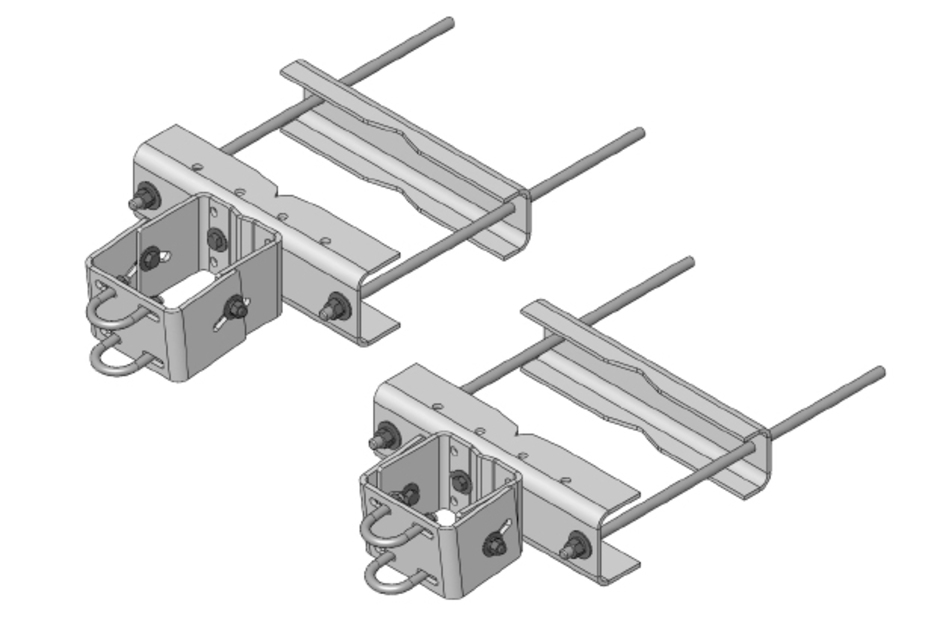

Large Leg Universal Open Face Pipe Mount Kit for 2-3/8 in OD pipe
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 127 mm | 5 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 68.1 kg | 150.135 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Straight or tapered legs up to 406.4 mm (16 in) OD |
| Note | One 96 in x 8 in panel antenna per sector |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 127 mm | 5 in |
| Width | 304.8 mm | 12 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 406.4 mm | 16 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 203.2 mm | 8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Sliding pipe mount brackets | Universal saddle mount |
| Packaging quantity | 1 |
| Weight, net | 68.1 kg | 150.135 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
