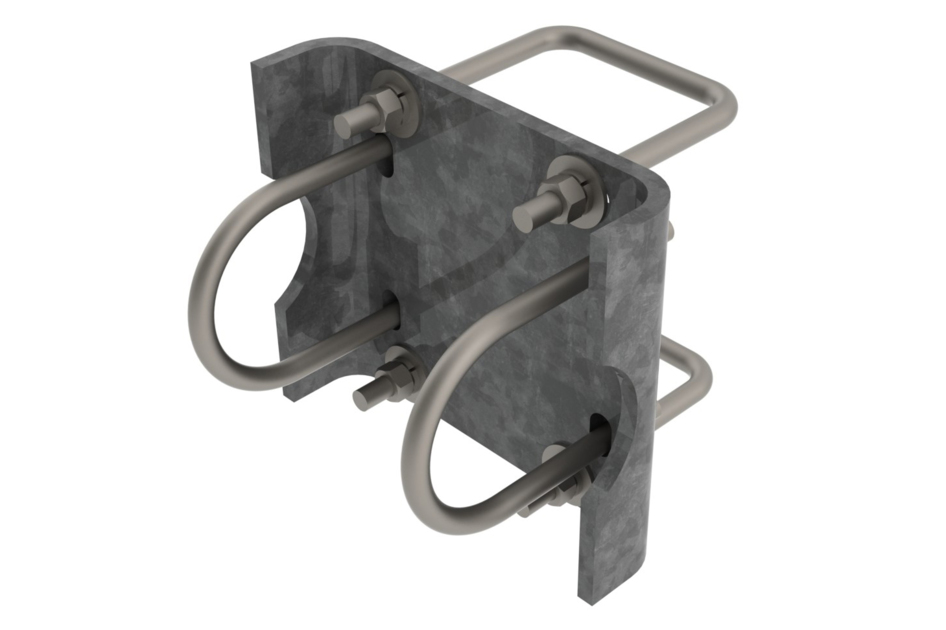

MTC3055PM35
Pipe Mount for 4 in Square Tube Face, 3-1/2 in OD pipe
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Square tube, 101.6 mm (4 in) |
Dimensions
| Height | 254 mm | 10 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 6.8 kg | 14.991 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Square tube, 101.6 mm (4 in) |
Dimensions
| Height | 254 mm | 10 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 6.8 kg | 14.991 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
