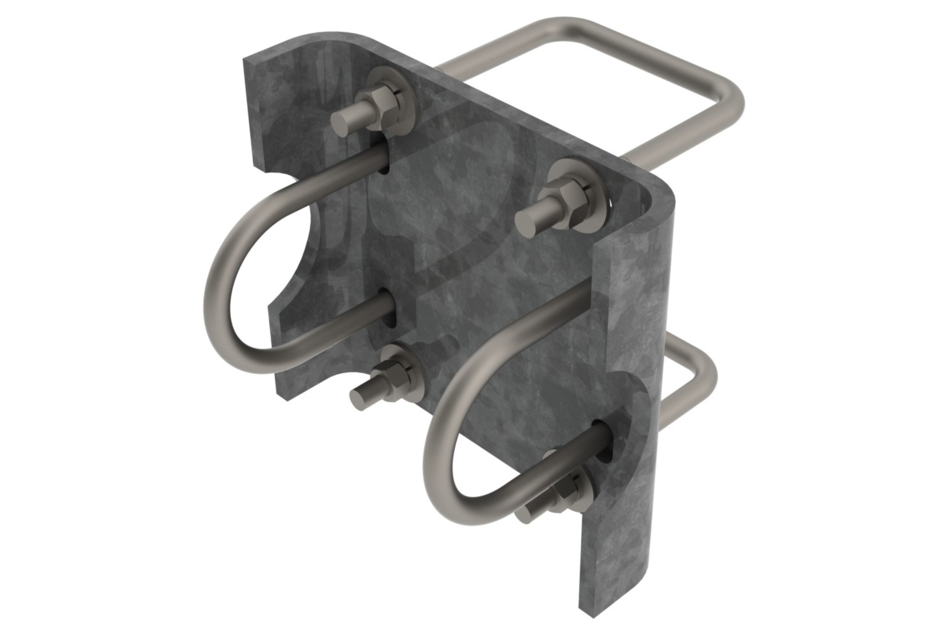

MTC3055PM2
Pipe Mount for 4 in Square Tube Face, 2-3/8 in OD pipe
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Square tube, 101.6 mm (4 in) |
Dimensions
| Height | 233.68 mm | 9.2 in |
| Width | 127 mm | 5 in |
| Length | 203.2 mm | 8 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 6.2 kg | 13.669 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
