BB-S10-10

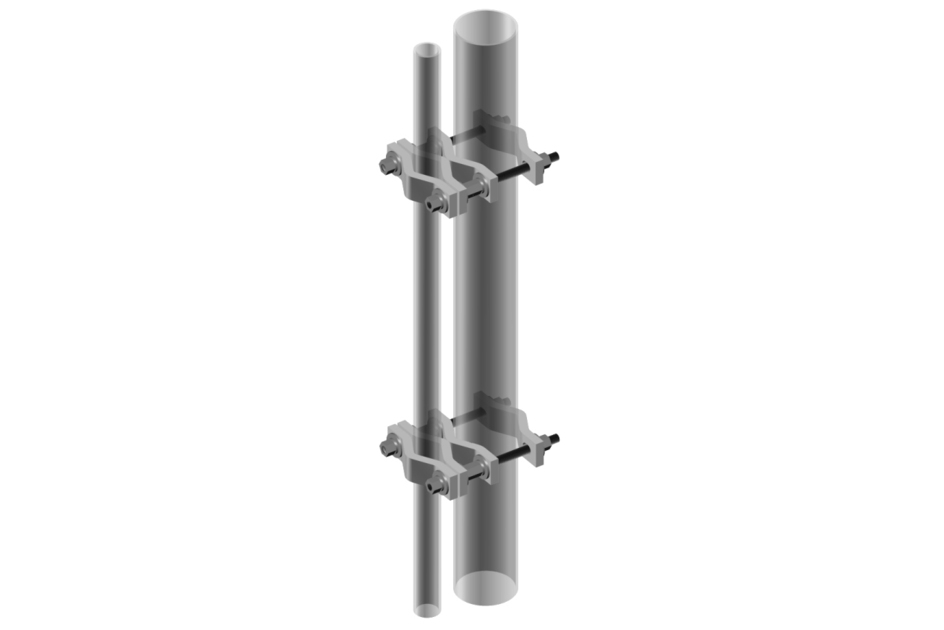

Welded Pipe-to-Pipe Clamp, heavy duty, joins two 1-1/2 in to 3-1/2 in OD round members
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 152.4 mm | 6 in |
| Length | 254 mm | 10 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 5.9 kg | 13.007 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
