RK-60-3M
Base product: MOUNT-REINFORCEMENT-KITS

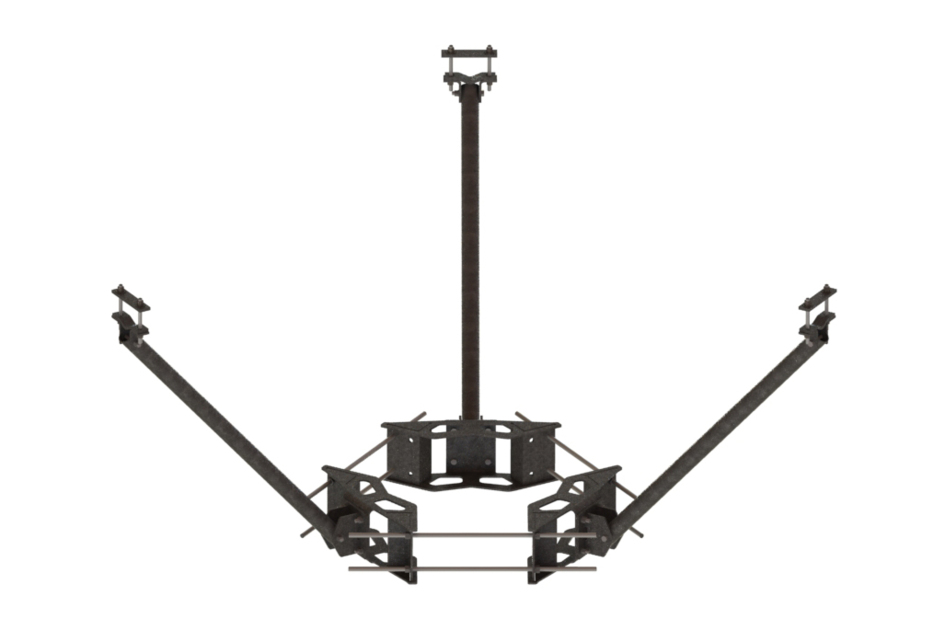

Monopole Load Distribution Reinforcement Kit, 3 Sector, 15" to 50" OD, 60" Kicker
Specifications
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 1524 mm | 60 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 157.397 kg | 347 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Reinforcement kit |
General specifications
| Mounting | Monopole, 381–1270 mm (15–50 in) OD |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Length | 1524 mm | 60 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 381 mm | 15 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Attachment hardware | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 157.397 kg | 347 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
