MTC3397U
Base product: MC-PK-SERIES

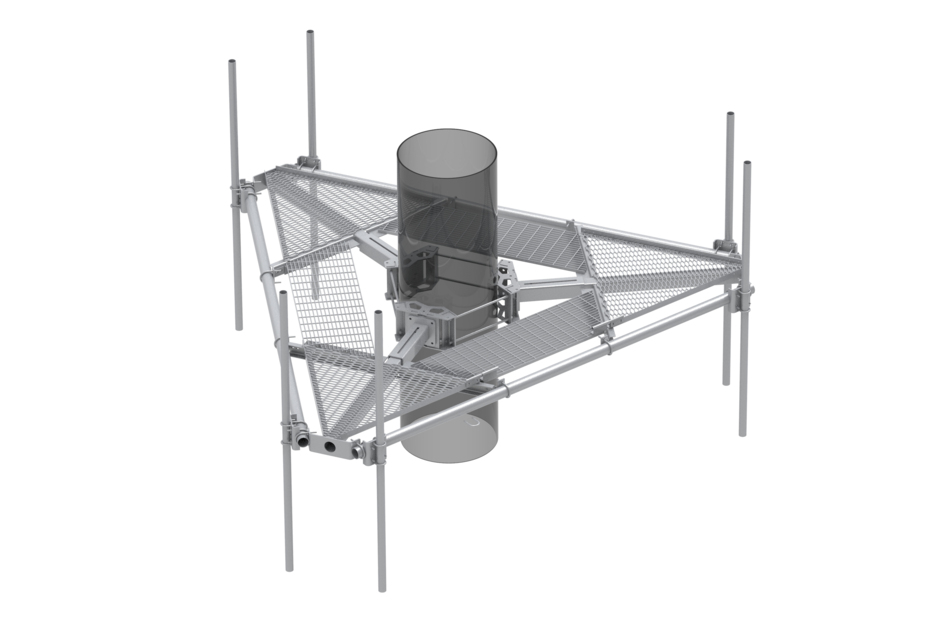

Full Grating Co-location Platform Kit, 12.5 ft face, 10 in to 30 in OD, includes six 2-3/8 in OD x96 in pipes
Specifications
Product classification
| Product Type | Monopole platform kit |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 6 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Pipes | Platform | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 634.304 kg | 1398.4 lb |
Product classification
| Product Type | Monopole platform kit |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 6 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Pipes | Platform | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 634.304 kg | 1398.4 lb |
