MC-K12M-B
Base product: MC-K-SERIES

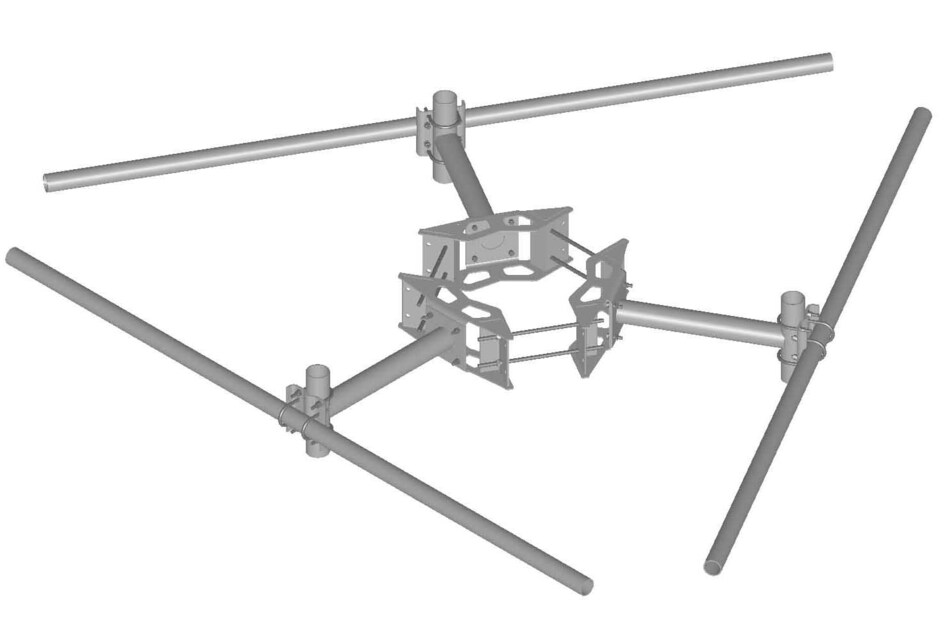

Monopole Co-location T-Frame kit, 12 in to 50 in OD, 12 ft 6 in face, pipe ordered separately
Specifications
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 3990.34 mm | 157.1 in |
| Mounting Circumference, minimum | 1196.34 mm | 47.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Cellular pipe frames | Pipe mounts | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 376.482 kg | 830 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Monopole T-frame kit |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 3990.34 mm | 157.1 in |
| Mounting Circumference, minimum | 1196.34 mm | 47.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Cellular pipe frames | Pipe mounts | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 376.482 kg | 830 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
