MC-FM4-24-278
Base product: MC-K-SERIES

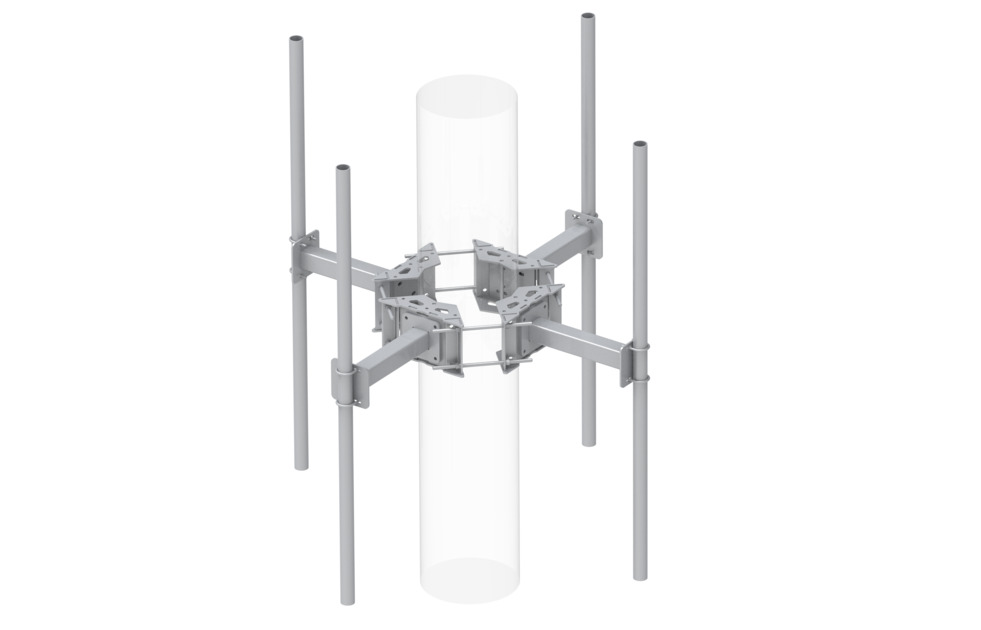

4-sector Monopole 24" Stand-off Mount kit, 10 in to 30 in OD, includes (4) 2-7/8" OD x 96" pipe
Specifications
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 0.000 m | 0 ft |
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 609.600 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes (4) | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 260.453 kg | 574.2 lb |
Product classification
| Product Type | Stand-off mount |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 4 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 0.000 m | 0 ft |
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 609.600 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes (4) | Ring mount | Stand-off arms |
| Packaging quantity | 1 |
| Weight, net | 260.453 kg | 574.2 lb |
