EQ-P1520-EP-LP-003
Base product: HEAVY-DUTY-PLATFORMS

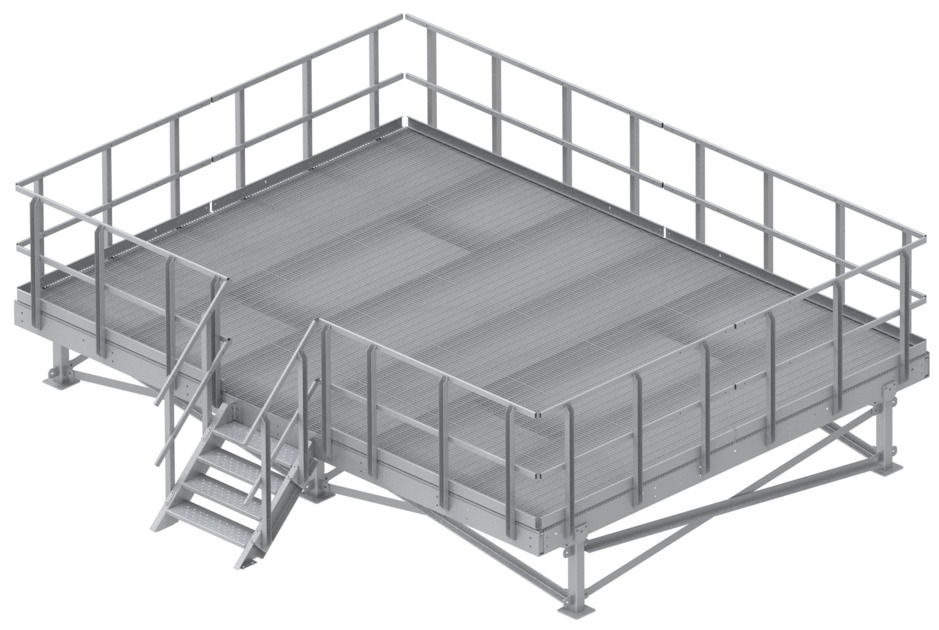

Elevated Equipment Platform, 15 ft x 20 ft with Stairs and Handrail plus 3 foot Elevation Kit
Specifications
Product classification
| Product Type | Equipment platform system |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Legs, quantity | 10 |
Dimensions
| Width | 6096 mm | 240 in |
| Length | 4572.000 mm | 180 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs | Rail | Steps |
| Packaging quantity | 1 |
| Weight, net | 2908.6 kg | 6412.358 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Equipment platform system |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Legs, quantity | 10 |
Dimensions
| Width | 6096 mm | 240 in |
| Length | 4572.000 mm | 180 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs | Rail | Steps |
| Packaging quantity | 1 |
| Weight, net | 2908.6 kg | 6412.358 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
