TMAT1921B68-21-43 | E14R00P09

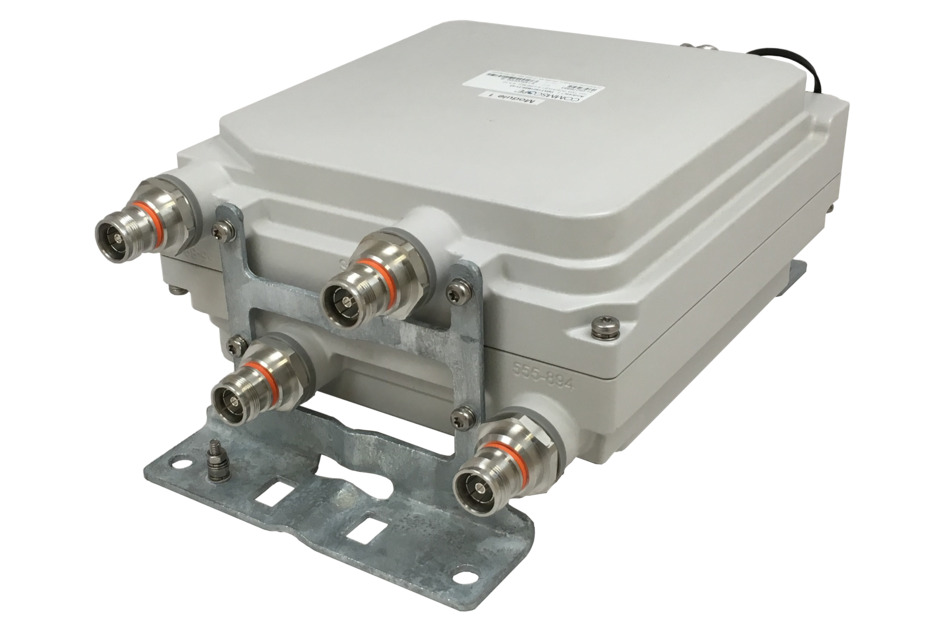

Tower Mounted Amplifier, Twin Diplexed PCS/AWS 1–4, 555–894 MHz bypass, 4.3-10
Features and benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
- Includes 600 MHz and AWS-3/4 bands
Specifications
Product classification
| Product Type | 1-BTS:2-ANT (Diplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 231.5 mm | 9.114 in |
| Width | 220.5 mm | 8.681 in |
| Depth | 106 mm | 4.173 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |

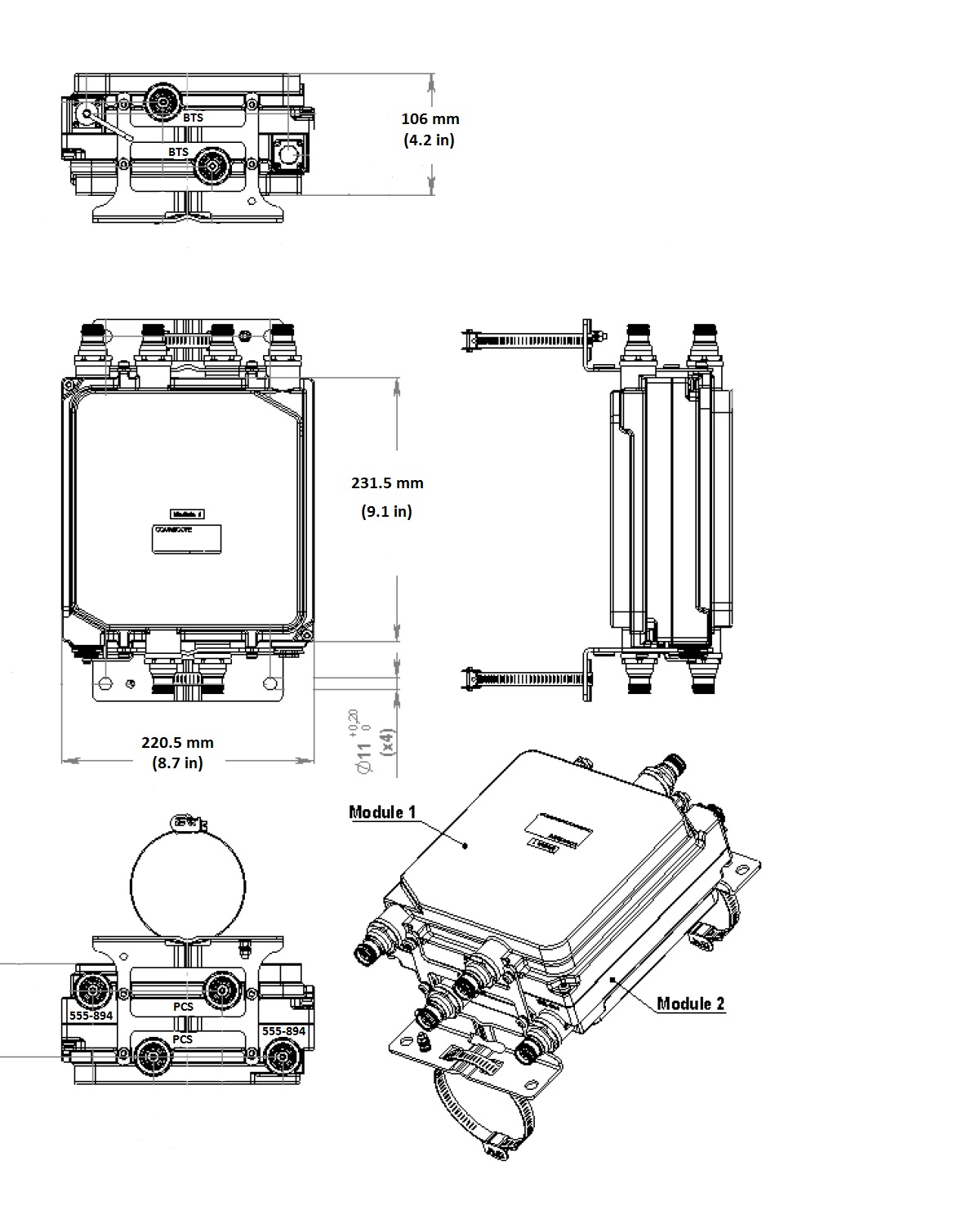

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, Band Pass | APT 700 | CEL 850 | EDD 800 | LMR 750 | LMR 800 | USA 700 | USA 750 |
| License Band, LNA | AWS 1700 | PCS 1900 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 240 mA @ 12 V |
| Voltage | 7–30 Vdc |
| Voltage, CWA Mode | 10–18 Vdc |
| Alarm Current, CWA Mode | 30–170 mA @ 10–18 V |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 555–894 | AWS–PCS | AWS–PCS |
| AISG 2.0 Device Subunit | E14R00P09 2/4 | E14R00P09 1/3 | |
| License Band | APT 700, Band Pass CEL 850, Band Pass EDD 800, Band Pass LMR 750, Band Pass LMR 800, Band Pass USA 750, Band Pass | AWS 1700, LNA | PCS 1900, LNA |
Electrical specifications, band pass
| Frequency Range, MHz | 555–894 | ||
| Insertion Loss, typical, dB | 0.10 | ||
| Total Group Delay, typical, ns | 4 | ||
| Return Loss, typical, dB | 22 | ||
| Isolation, minimum, dB | 50 | ||
| Input Power, RMS, maximum, W | 200 | ||
| Input Power, PEP, maximum, W | 3,000 | ||
| 3rd Order PIM, typical, dBc | -156 | ||
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1695–1780 | 1850–1910 | |
| Bandwidth, MHz | 85.00 | 60.00 | |
| Gain, nominal, dB | 12.0 | 12.0 | |
| Gain Tolerance, dB | ±1.2 | ±1.2 | |
| Noise Figure, typical, dB | 1.0 | 1.3 | |
| Total Group Delay, typical, ns | 30 | 110 | |
| Return Loss, typical, dB | 22 | 22 | |
| Insertion Loss - Bypass Mode, typical, dB | 1.3 | 2.2 | |
| Return Loss - Bypass Mode, typical, dB | 16 | 16 | |
| TX Band Rejection, minimum, dB | 60 | 60 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2110–2200 | 1930–1990 | |
| Bandwidth, MHz | 90.00 | 60.00 | |
| Insertion Loss, typical, dB | 0.15 | 0.45 | |
| Total Group Delay, typical, ns | 10 | 35 | |
| Return Loss, typical, dB | 22 | 22 | |
| RX Band Rejection, minimum, dB | 55 | 45 | |
| Input Power, RMS, maximum, W | 200 | 200 | |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | |
| 3rd Order PIM, typical, dBc | -156 | -156 | |
| 3rd Order PIM Test Method | 1 x 20 W AWS CW tone 1 x 20 W PCS CW tone | 2 x 20 W CW tones |

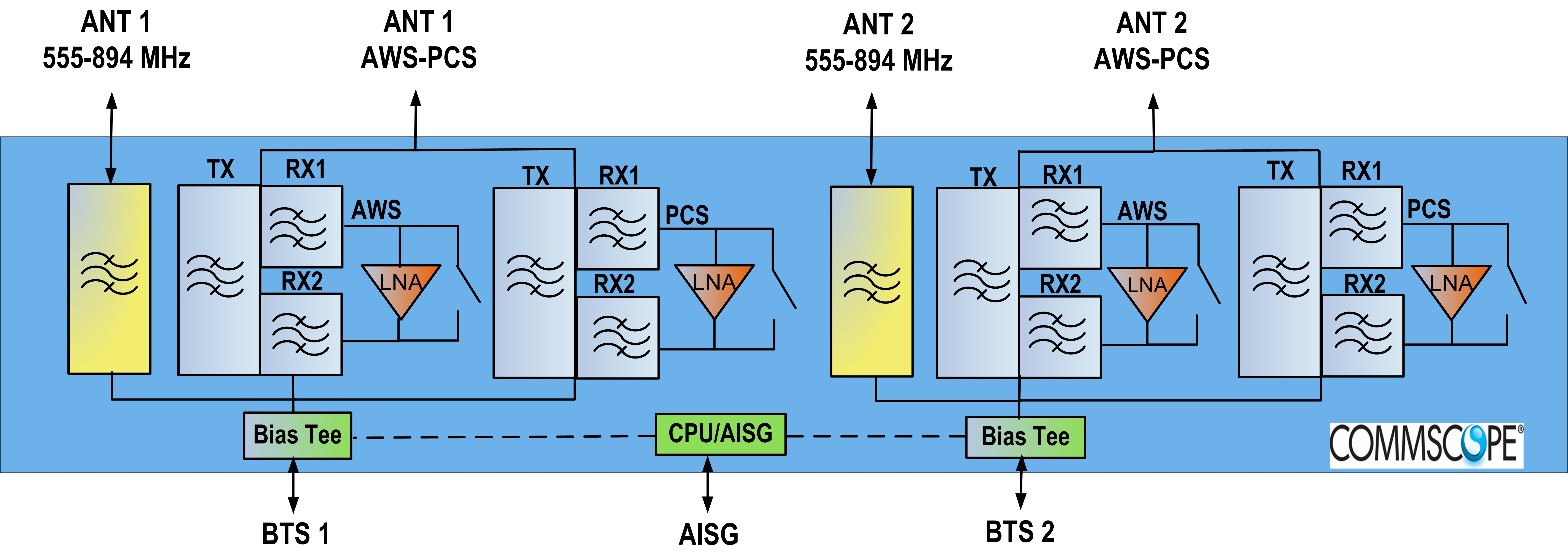

Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.9 kg | 1.984 lb |
| Weight, without mounting hardware | 7.1 kg | 15.653 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | 1-BTS:2-ANT (Diplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 231.5 mm | 9.114 in |
| Width | 220.5 mm | 8.681 in |
| Depth | 106 mm | 4.173 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| License Band, Band Pass | APT 700 | CEL 850 | EDD 800 | LMR 750 | LMR 800 | USA 700 | USA 750 |
| License Band, LNA | AWS 1700 | PCS 1900 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 240 mA @ 12 V |
| Voltage | 7–30 Vdc |
| Voltage, CWA Mode | 10–18 Vdc |
| Alarm Current, CWA Mode | 30–170 mA @ 10–18 V |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Default Protocol | AISG 2.0 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 555–894 | AWS–PCS | AWS–PCS |
| AISG 2.0 Device Subunit | E14R00P09 2/4 | E14R00P09 1/3 | |
| License Band | APT 700, Band Pass; CEL 850, Band Pass; EDD 800, Band Pass; LMR 750, Band Pass; LMR 800, Band Pass; USA 750, Band Pass | AWS 1700, LNA | PCS 1900, LNA |
Electrical specifications, band pass
| Frequency Range, MHz | 555–894 | ||
| Insertion Loss, typical, dB | 0.10 | ||
| Total Group Delay, typical, ns | 4 | ||
| Return Loss, typical, dB | 22 | ||
| Isolation, minimum, dB | 50 | ||
| Input Power, RMS, maximum, W | 200 | ||
| Input Power, PEP, maximum, W | 3,000 | ||
| 3rd Order PIM, typical, dBc | -156 | ||
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1695–1780 | 1850–1910 | |
| Bandwidth, MHz | 85.00 | 60.00 | |
| Gain, nominal, dB | 12.0 | 12.0 | |
| Gain Tolerance, dB | ±1.2 | ±1.2 | |
| Noise Figure, typical, dB | 1.0 | 1.3 | |
| Total Group Delay, typical, ns | 30 | 110 | |
| Return Loss, typical, dB | 22 | 22 | |
| Insertion Loss - Bypass Mode, typical, dB | 1.3 | 2.2 | |
| Return Loss - Bypass Mode, typical, dB | 16 | 16 | |
| TX Band Rejection, minimum, dB | 60 | 60 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2110–2200 | 1930–1990 | |
| Bandwidth, MHz | 90.00 | 60.00 | |
| Insertion Loss, typical, dB | 0.15 | 0.45 | |
| Total Group Delay, typical, ns | 10 | 35 | |
| Return Loss, typical, dB | 22 | 22 | |
| RX Band Rejection, minimum, dB | 55 | 45 | |
| Input Power, RMS, maximum, W | 200 | 200 | |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | |
| 3rd Order PIM, typical, dBc | -156 | -156 | |
| 3rd Order PIM Test Method | 1 x 20 W AWS CW tone; 1 x 20 W PCS CW tone | 2 x 20 W CW tones |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.9 kg | 1.984 lb |
| Weight, without mounting hardware | 7.1 kg | 15.653 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
