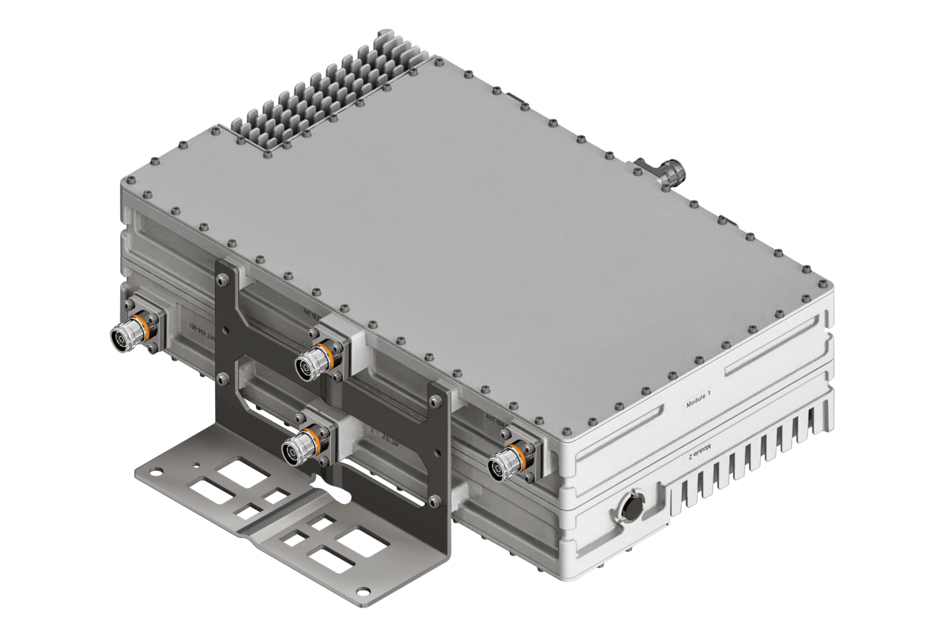

E16Z01P82
Quad Band TMA 1800/2100/2300/2600 with 694-960 bypass, 1 AISG, 4 devices - 2 subunits, 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- Designed to boost UP-Link Coverage and KPIs
- TMA is operating in AISG mode
- 4 devices with 2 sub-units
- Option to by-pass TDD2300 LNA
- Single AISG with 1 RET connector
- RET interface to control antenna RET actuators with AISG standard
- Automatic LNA by-pass function
- 2 input ports and 4 output ports
- TMA with 694-960 MHz bypass
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | 1-BTS:2-ANT (Diplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 120 mm | 4.724 in |
| Width | 457 mm | 17.992 in |
| Depth | 275 mm | 10.827 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

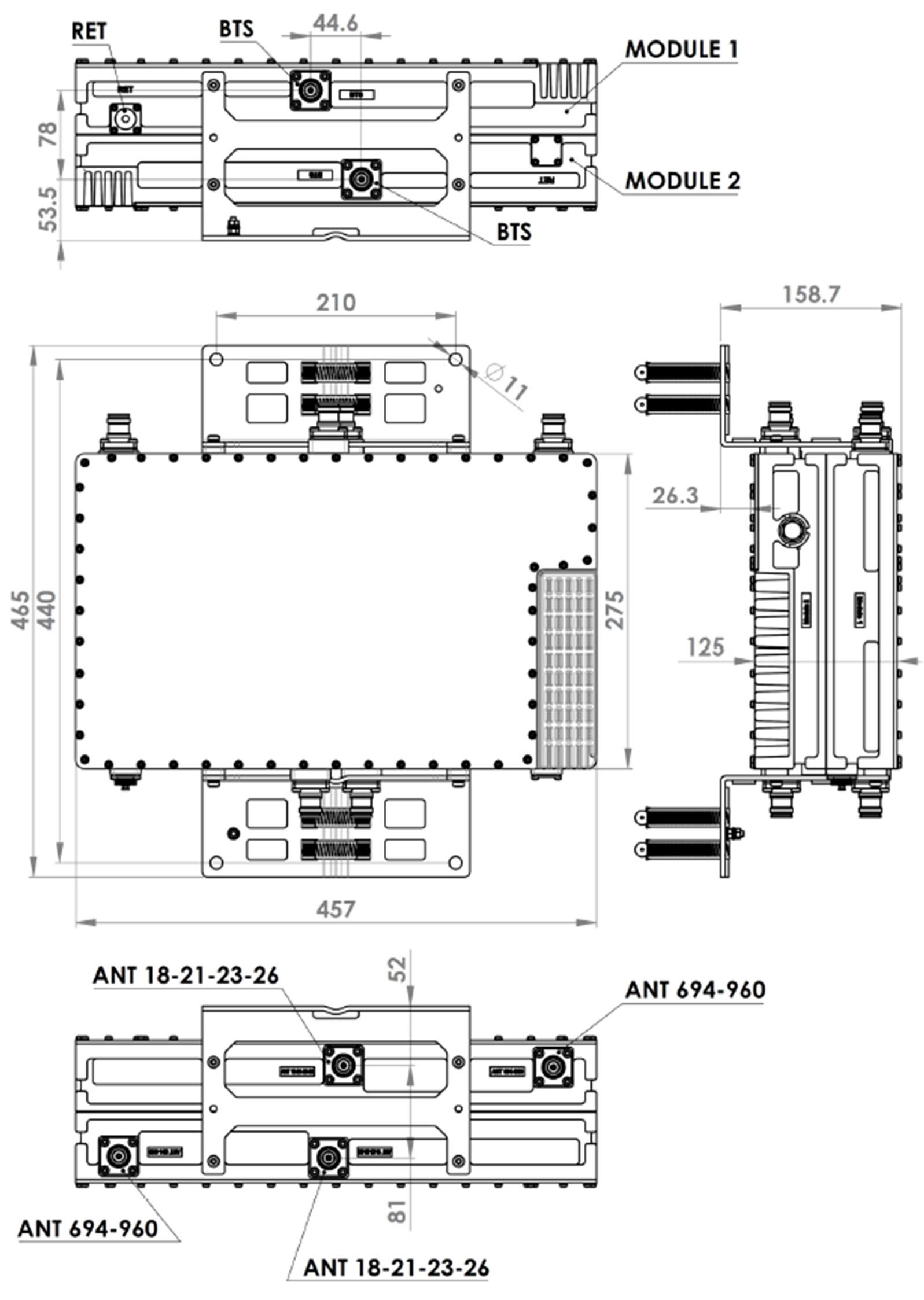

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, LNA | DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 | 4 |
| Port Designation | ANT | ANT | ANT | ANT |
| License Band | DCS 1800, LNA | IMT 2100, LNA | TDD 2300, LNA | IMT 2600, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1710–1785 | 1920–1980 | 2300–2400 | 2500–2570 |
| Bandwidth, MHz | 75.00 | 60.00 | 100.00 | 70.00 |
| Gain, nominal, dB | 12.0 | 12.0 | 12.0 | 12.0 |
| Noise Figure, typical, dB | 1.2 | 1.2 | 2.2 | 1.2 |
| Total Group Delay, typical, ns | 100 | 80 | 65 | 70 |
| Return Loss, typical, dB | 20 | 20 | 20 | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.0 | 2.0 | 2.0 | 2.0 |
| Return Loss - Bypass Mode, typical, dB | 18 | 18 | 18 | 18 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 1805–1880 | 2110–2170 | 2300–2400 | 2620–2690 |
| Bandwidth, MHz | 75.00 | 60.00 | 100.00 | 70.00 |
| Insertion Loss, typical, dB | 0.50 | 0.30 | 1.70 | 0.40 |
| Total Group Delay, typical, ns | 40 | 22 | 58 | 22 |
| Return Loss, typical, dB | 20 | 20 | 18 | 20 |
| Input Power, RMS, maximum, W | 100 | 100 | 50 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | 500 | 1,000 |
| 3rd Order PIM, typical, dBc | -155 | -155 | -155 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

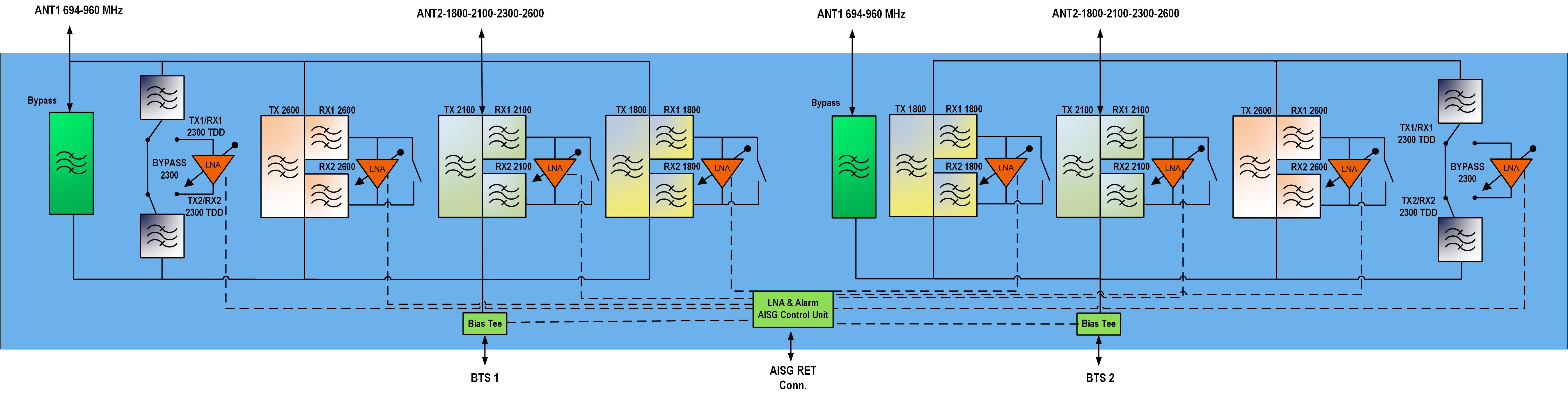

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 15 L |
| Weight, net | 18.5 kg | 40.785 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | 1-BTS:2-ANT (Diplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 120 mm | 4.724 in |
| Width | 457 mm | 17.992 in |
| Depth | 275 mm | 10.827 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| License Band, LNA | DCS 1800 | IMT 2100 | IMT 2600 | TDD 2300 |
Electrical specifications, dc power/alarm
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 | 4 |
| Port Designation | ANT | ANT | ANT | ANT |
| License Band | DCS 1800, LNA | IMT 2100, LNA | TDD 2300, LNA | IMT 2600, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 1710–1785 | 1920–1980 | 2300–2400 | 2500–2570 |
| Bandwidth, MHz | 75.00 | 60.00 | 100.00 | 70.00 |
| Gain, nominal, dB | 12.0 | 12.0 | 12.0 | 12.0 |
| Noise Figure, typical, dB | 1.2 | 1.2 | 2.2 | 1.2 |
| Total Group Delay, typical, ns | 100 | 80 | 65 | 70 |
| Return Loss, typical, dB | 20 | 20 | 20 | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.0 | 2.0 | 2.0 | 2.0 |
| Return Loss - Bypass Mode, typical, dB | 18 | 18 | 18 | 18 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 1805–1880 | 2110–2170 | 2300–2400 | 2620–2690 |
| Bandwidth, MHz | 75.00 | 60.00 | 100.00 | 70.00 |
| Insertion Loss, typical, dB | 0.50 | 0.30 | 1.70 | 0.40 |
| Total Group Delay, typical, ns | 40 | 22 | 58 | 22 |
| Return Loss, typical, dB | 20 | 20 | 18 | 20 |
| Input Power, RMS, maximum, W | 100 | 100 | 50 | 100 |
| Input Power, PEP, maximum, W | 1,000 | 1,000 | 500 | 1,000 |
| 3rd Order PIM, typical, dBc | -155 | -155 | -155 | |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 15 L |
| Weight, net | 18.5 kg | 40.785 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
