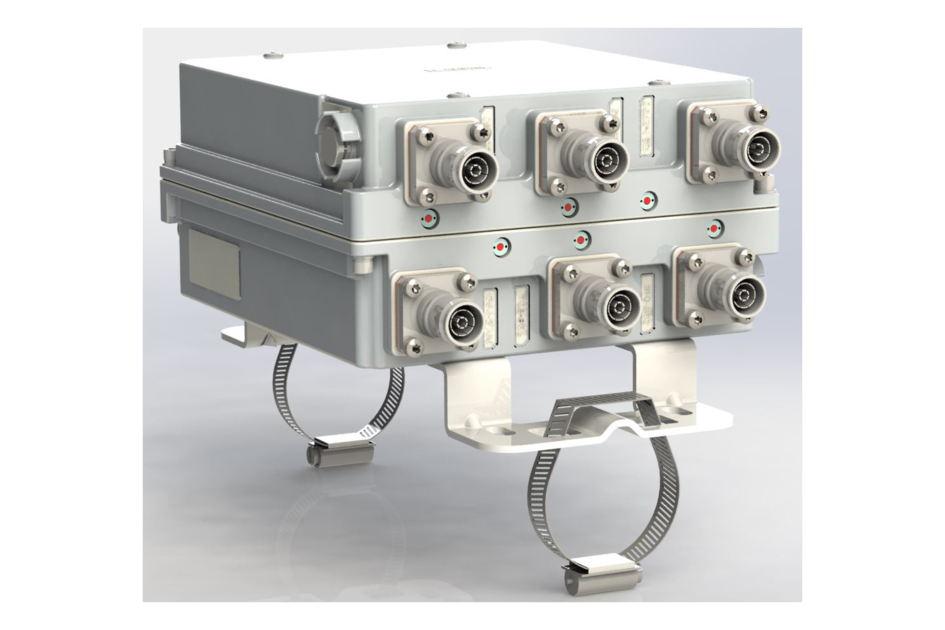

E14F60P19
2X Triplexer 703-862/880-960/1350-2700, DC Smart Bypass, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- Twin configuration
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network modernization application, introduction of LTE1400 on existing site
- Designed for network modernization application, introduction of LTE700 and LTE800 on existing site
- DC/AISG SMART bypass functionality
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 110 mm | 4.331 in |
| Width | 204 mm | 8.032 in |
| Depth | 222 mm | 8.740 in |
| Mounting Pipe Diameter Range | 43–122 mm |

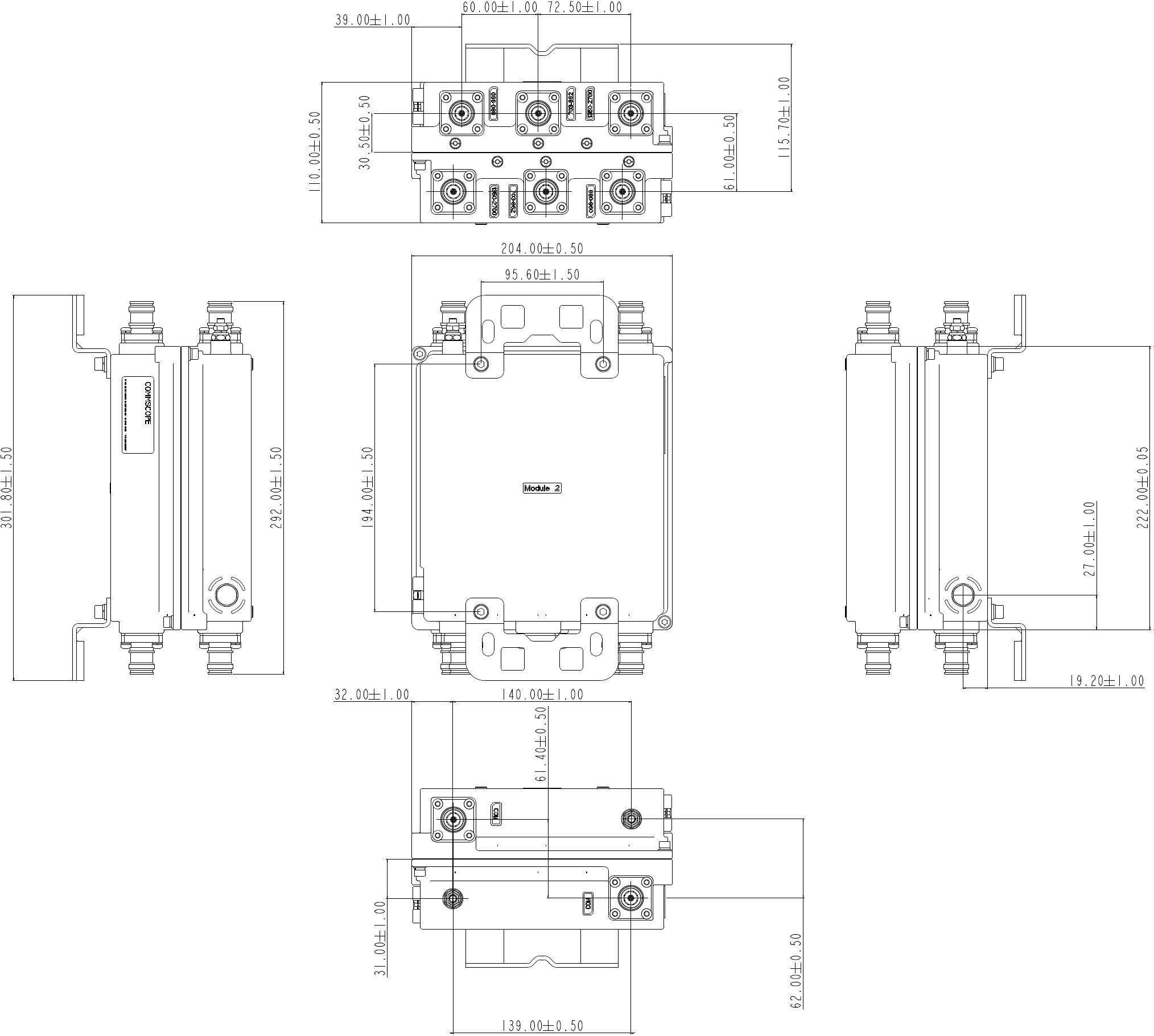

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 703-862 | 880-960 | 1350-2700 |
| License Band | APT 700, Band Pass EDD 800, Band Pass | CEL 900, Band Pass LMR 900, Band Pass | DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass TDD 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 703–862 | 880–960 | 1350–2700 |
| Insertion Loss, typical, dB | 0.45 | 0.45 | 0.40 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, typical, dB | 51 | 51 | 51 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -162 | -162 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

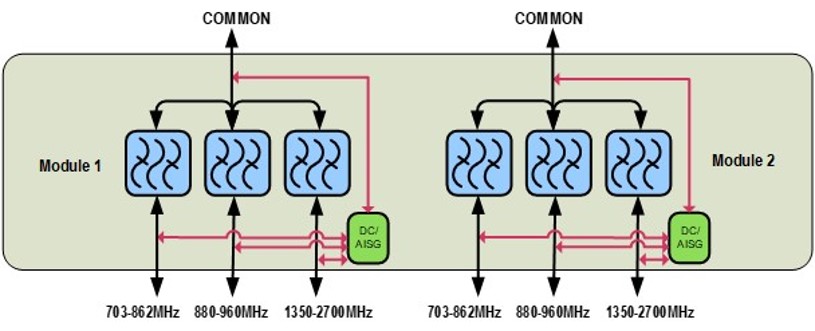

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.1 L |
| Weight, with mounting hardware | 7.1 kg | 15.653 lb |
| Weight, without mounting hardware | 6.8 kg | 14.991 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Triplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 110 mm | 4.331 in |
| Width | 204 mm | 8.032 in |
| Depth | 222 mm | 8.740 in |
| Mounting Pipe Diameter Range | 43–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 | 3 |
| Port Designation | 703-862 | 880-960 | 1350-2700 |
| License Band | APT 700, Band Pass; EDD 800, Band Pass | CEL 900, Band Pass; LMR 900, Band Pass | DCS 1800, Band Pass; IMT 2100, Band Pass; IMT 2600, Band Pass; TDD 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 703–862 | 880–960 | 1350–2700 |
| Insertion Loss, typical, dB | 0.45 | 0.45 | 0.40 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, typical, dB | 51 | 51 | 51 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,000 | 3,000 | 3,000 |
| 3rd Order PIM, typical, dBc | -162 | -162 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 5.1 L |
| Weight, with mounting hardware | 7.1 kg | 15.653 lb |
| Weight, without mounting hardware | 6.8 kg | 14.991 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
