E12F01P93

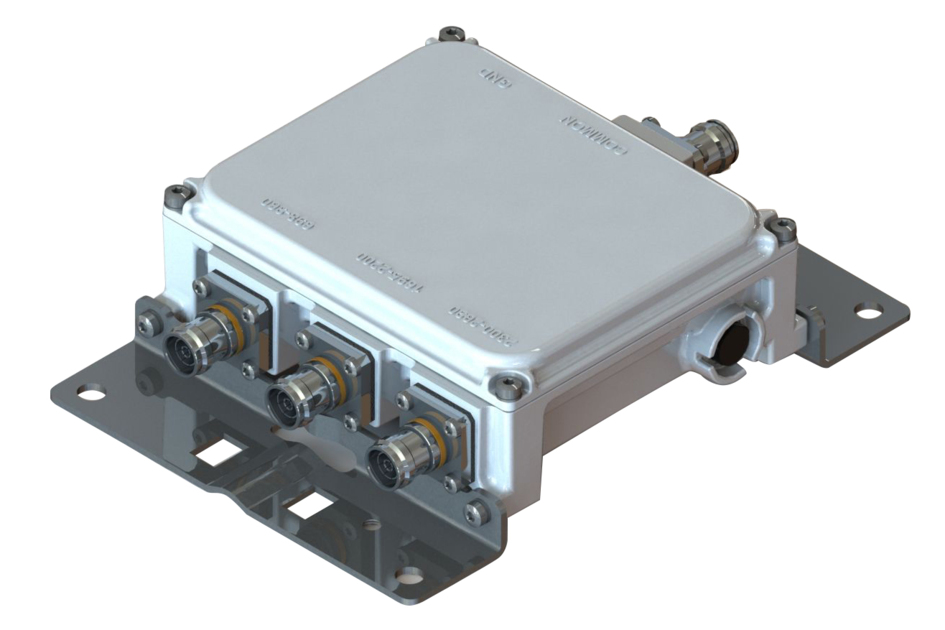

Triplexer 700-900/1700-2100/2300-2700, dc bypass on all ports
Features and benefits
- Industry leading PIM performance
- Designed for network Modernization, introduction of LTE1800 on existing site
- Designed for network Modernization, introduction of LTE2600 on existing site
- DC/AISG passing on all ports
- Single configuration
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC182126 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 182 mm | 7.165 in |
| Width | 62 mm | 2.441 in |
| Depth | 168 mm | 6.614 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |

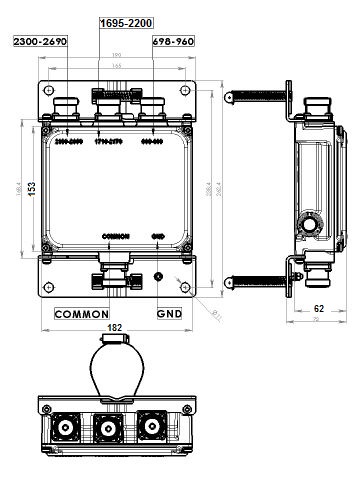

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 700-900 | 1700-2100 | 2300-2700 |
| License Band | CEL 850, Band Pass CEL 900, Band Pass EDD 800, Band Pass USA 700, Band Pass | DCS 1800, Band Pass IMT 2100, Band Pass | IMT 2600, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 698–960 | 1710–2170 | 2300–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.30 | 0.35 |
| Group Delay Variation, maximum, ns | 25 | 25 | 25 |
| Total Group Delay, typical, ns | 30 | 15 | 15 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,500 | 3,500 | 3,500 |
| 3rd Order PIM, typical, dBc | -157 | -157 | -157 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |

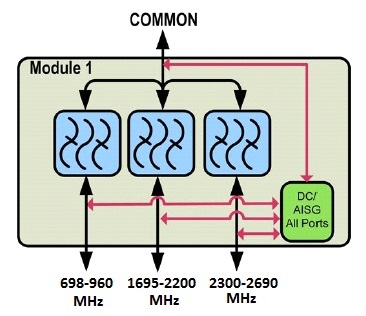

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.9 L |
| Weight, net | 3.2 kg | 7.055 lb |
Product classification
| Product Type | Triplexer |
General specifications
| Product Family | CBC182126 |
| Color | Gray |
| Common Port Label | COM |
| Modularity | 1-Single |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 182 mm | 7.165 in |
| Width | 62 mm | 2.441 in |
| Depth | 168 mm | 6.614 in |
| Mounting Pipe Diameter Range | 42.6–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 | Branch 3 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 | Branch 3 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 1 | 1 |
| Branch | 1 | 2 | 3 |
| Port Designation | 700-900 | 1700-2100 | 2300-2700 |
| License Band | CEL 850, Band Pass; CEL 900, Band Pass; EDD 800, Band Pass; USA 700, Band Pass | DCS 1800, Band Pass; IMT 2100, Band Pass | IMT 2600, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 698–960 | 1710–2170 | 2300–2690 |
| Insertion Loss, typical, dB | 0.15 | 0.30 | 0.35 |
| Group Delay Variation, maximum, ns | 25 | 25 | 25 |
| Total Group Delay, typical, ns | 30 | 15 | 15 |
| Return Loss, typical, dB | 20 | 20 | 20 |
| Isolation, minimum, dB | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 300 | 300 | 300 |
| Input Power, PEP, maximum, W | 3,500 | 3,500 | 3,500 |
| 3rd Order PIM, typical, dBc | -157 | -157 | -157 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers | Two +43 dBm carriers |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.9 L |
| Weight, net | 3.2 kg | 7.055 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
