E14F06P61

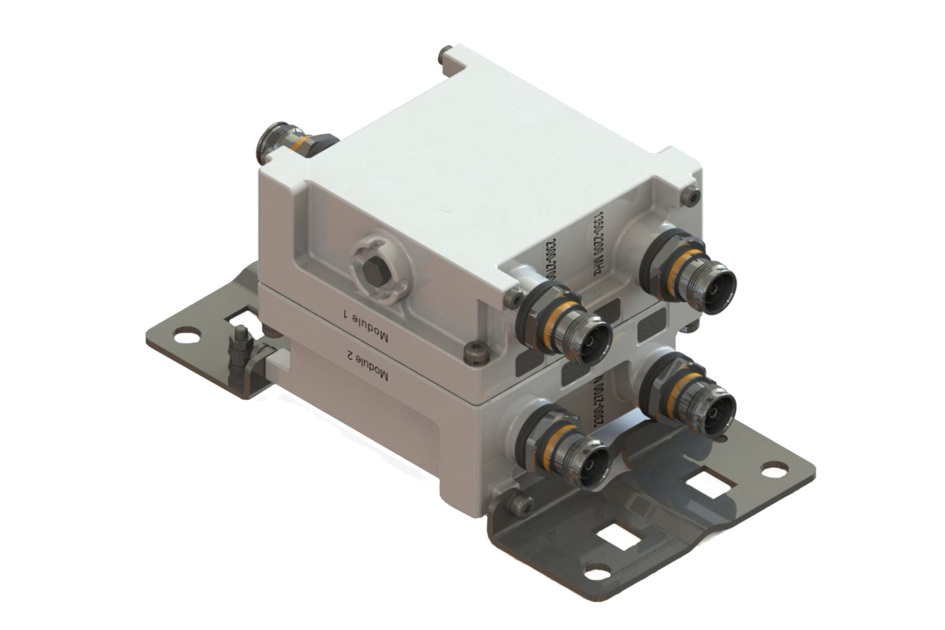

Twin Diplexer, 1350–2200 MHz / 2300–2700 MHz, DCauto, with 4.3-10 connectors
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network modernization application, introduction of LTE2300 and LTE2600 on existing site
- Twin configuration
- DC/AISG SMART bypass functionality
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 102 mm | 4.016 in |
| Width | 121 mm | 4.764 in |
| Depth | 117 mm | 4.606 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 43–122 mm |

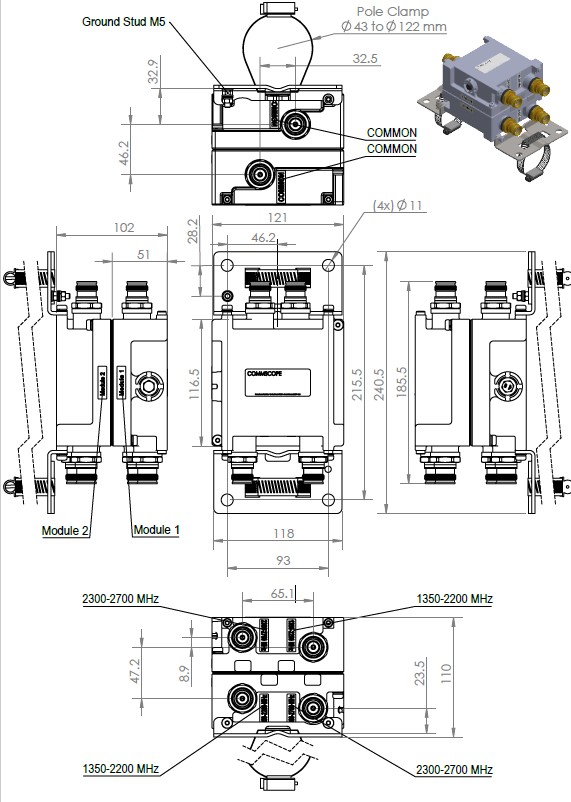

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | Auto sensing circuitry detects dc/AISG signal presence and selects path |
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 1350-2200 | 2300-2700 |
Electrical specifications, band pass
| Frequency Range, MHz | 1350–2200 | 2300–2700 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 52 | 52 |
| Input Power, RMS, maximum, W | 300 | 300 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -162 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |

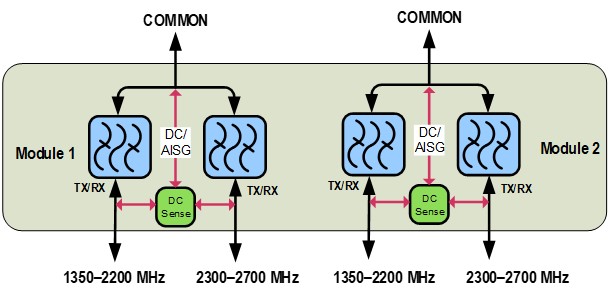

Block diagram
| Click on image to enlarge. |
Mechanical specifications
| Wind Speed, maximum | 150 km/h (93 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.45 L |
| Weight, with mounting hardware | 2.9 kg | 6.393 lb |
| Weight, without mounting hardware | 2.5 kg | 5.512 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Medium neck |
Dimensions
| Height | 102 mm | 4.016 in |
| Width | 121 mm | 4.764 in |
| Depth | 117 mm | 4.606 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| Mounting Pipe Diameter Range | 43–122 mm |
Electrical specifications
| Impedance | 50 ohm |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | Auto sensing circuitry detects dc/AISG signal presence and selects path |
| dc/AISG Pass-through, combiner | Autosensing |
| dc/AISG Pass-through, demultiplexer | Autosensing |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | 1350-2200 | 2300-2700 |
Electrical specifications, band pass
| Frequency Range, MHz | 1350–2200 | 2300–2700 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 52 | 52 |
| Input Power, RMS, maximum, W | 300 | 300 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -162 | -162 |
| 3rd Order PIM Test Method | Two +43 dBm carriers | Two +43 dBm carriers |
Mechanical specifications
| Wind Speed, maximum | 150 km/h (93 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 1.45 L |
| Weight, with mounting hardware | 2.9 kg | 6.393 lb |
| Weight, without mounting hardware | 2.5 kg | 5.512 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
