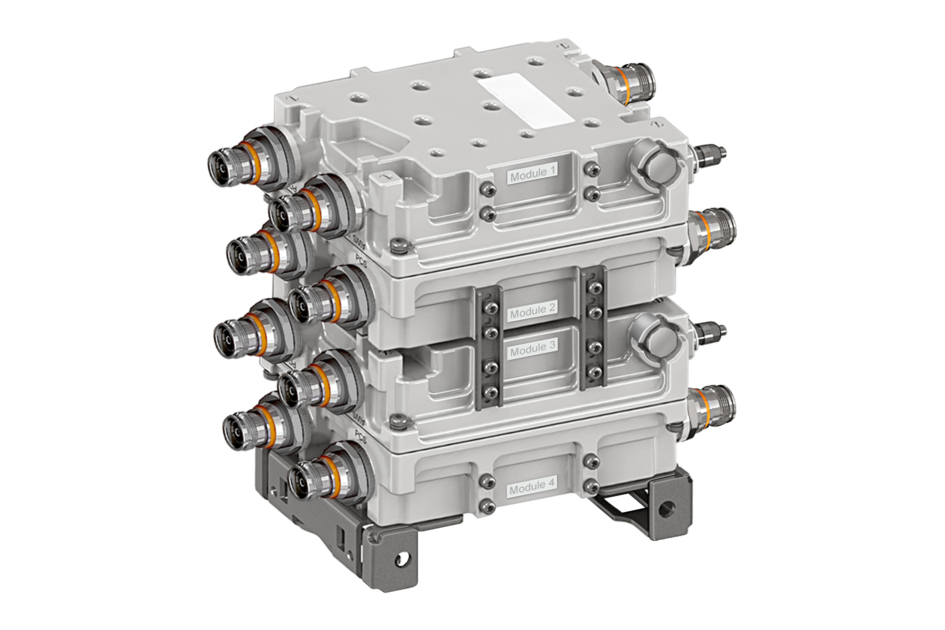

CDX1923Q-DS-43 | E14F05P93
Quad Diplexer PCS/AWS+WCS, dc Sense, 4.3-10
Features and benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
- Automatic dc switching with dc sense
- BTS-to-feeder and feeder-to-antenna application
- Convertible mounting brackets
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC1923 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 176.5 mm | 6.949 in |
| Width | 140 mm | 5.512 in |
| Depth | 207 mm | 8.15 in |
| Ground Screw Diameter | 6 mm | 0.236 in |

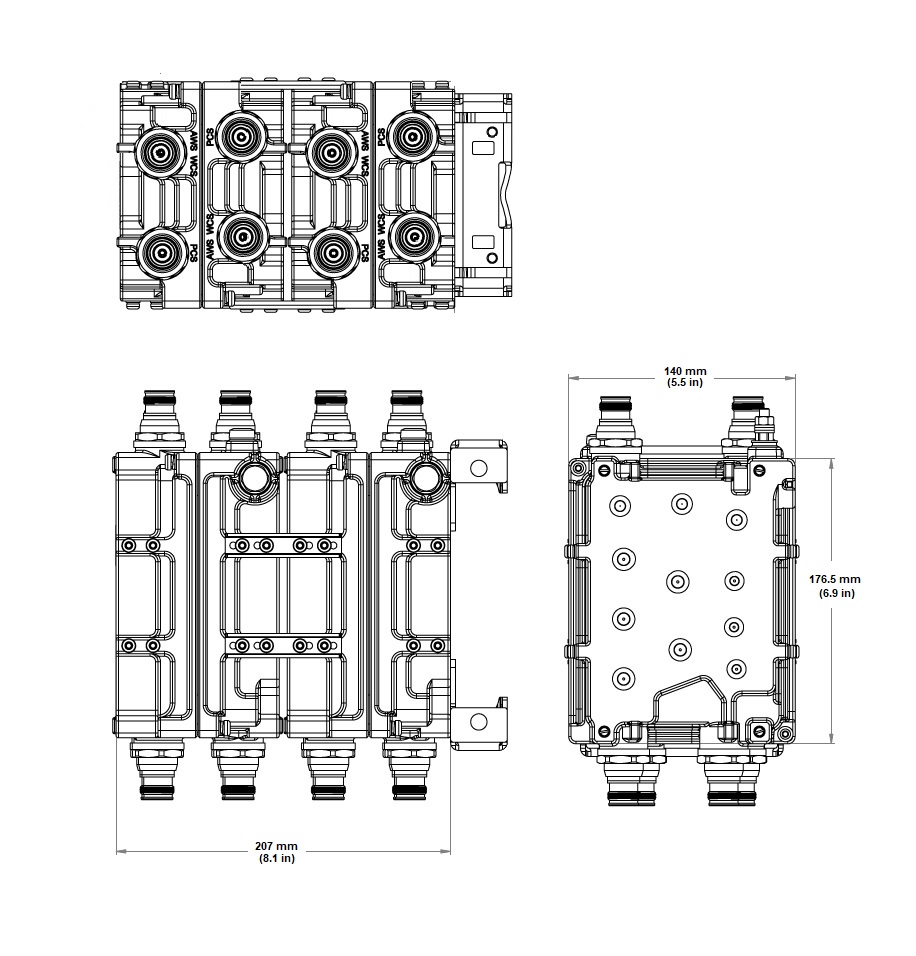

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 | TDD 1900 | WCS 2300 |
Electrical specifications, common port
| Composite Power, RMS | 250 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 |
| Port Designation | PCS | AWS - WCS |
| License Band | PCS 1900, Band Pass | AWS 1700, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1850-1995 | 1695–1780 2110–2200 2305–2360 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, typical, ns | 13 | 12 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, typical, dB | 58 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | |
| Higher Order PIM, minimum, dBc | -161 | |
| Higher Order PIM Test Method | 2 x 20 W CW tones |

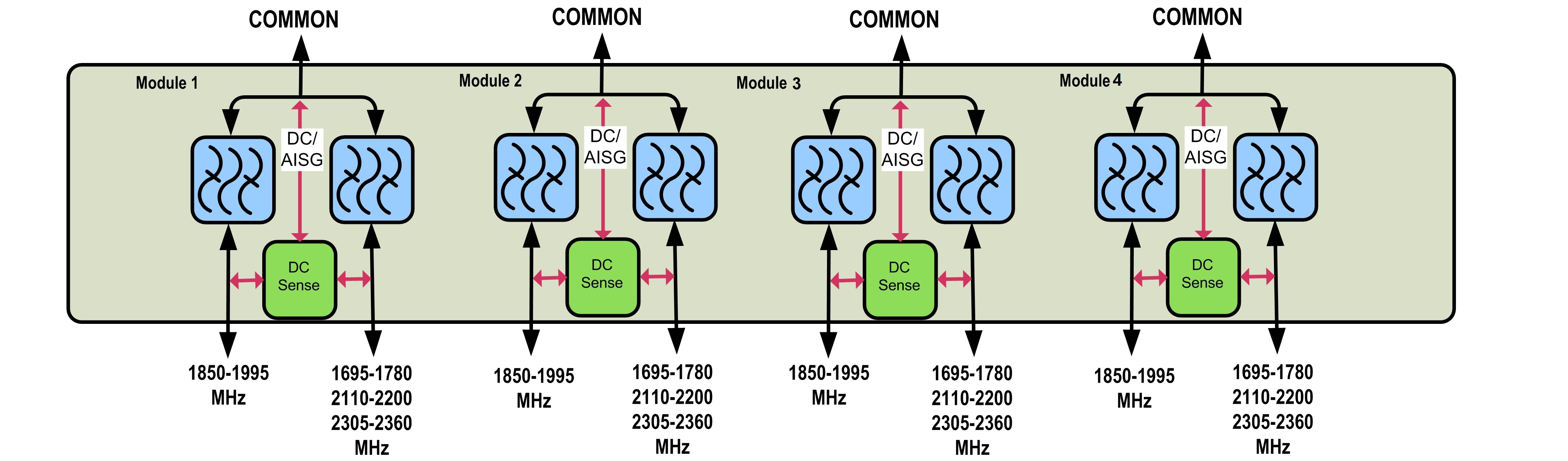

Block diagram
| Click on image to enlarge. |
Logic table
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 33.0 N @ 150 km/h (7.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 32.0 N @ 150 km/h (7.2 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Weight, without mounting hardware | 7.5 kg | 16.535 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Product Family | CBC1923 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 176.5 mm | 6.949 in |
| Width | 140 mm | 5.512 in |
| Depth | 207 mm | 8.15 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 | TDD 1900 | WCS 2300 |
Electrical specifications, common port
| Composite Power, RMS | 250 W |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 |
| Port Designation | PCS | AWS - WCS |
| License Band | PCS 1900, Band Pass | AWS 1700, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 1850-1995 | 1695–1780; 2110–2200; 2305–2360 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, typical, ns | 13 | 12 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, typical, dB | 58 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, typical, dBc | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | |
| Higher Order PIM, minimum, dBc | -161 | |
| Higher Order PIM Test Method | 2 x 20 W CW tones |
Material specifications
| Finish | Painted |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 33.0 N @ 150 km/h (7.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 32.0 N @ 150 km/h (7.2 lbf @ 150 km/h) |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lb |
| Weight, without mounting hardware | 7.5 kg | 16.535 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
