SFG22HDX-11-B
Base product: PIM-GUARD-MOUNTS

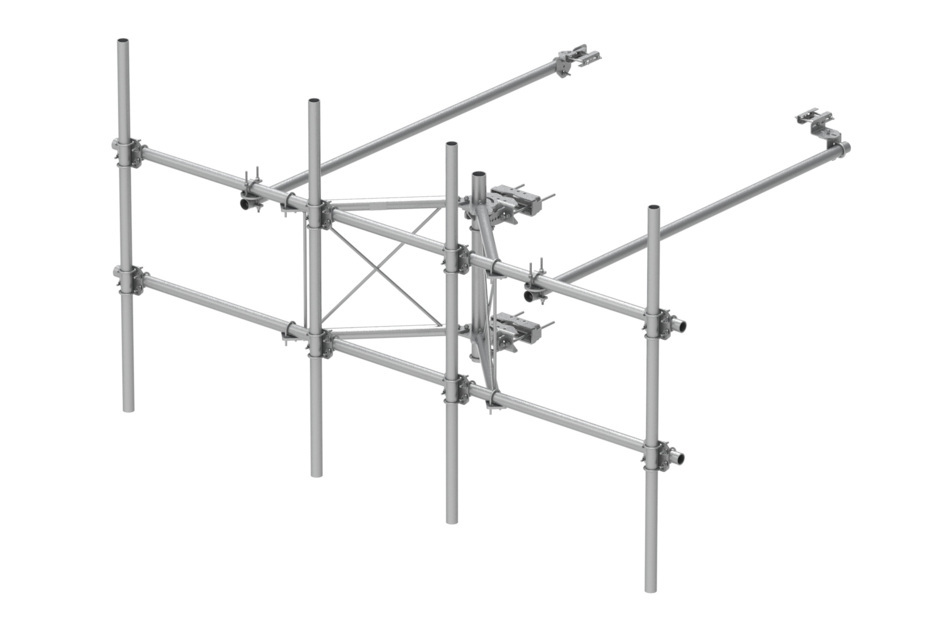

G22HDX Tower Sector Frame with extended face, 11 ft x 2.88 in OD face pipes. Base Kit Only. No antenna pipes.
Specifications
Product classification
| Product Type | High capacity Tower sector frame |
| Product Brand | PIM-guard |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Face Width | 3.353 m | 11 ft |
| Width | 3352.800 mm | 132 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1066.800 mm | 42 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Frame | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 214.740 kg | 473.42 lb |
Product classification
| Product Type | High capacity Tower sector frame |
| Product Brand | PIM-guard |
| Product Series | G2 |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Face Width | 3.353 m | 11 ft |
| Width | 3352.800 mm | 132 in |
| Face Support Pipe Diameter | 73.025 mm | 2.875 in |
| Mounting Diameter, maximum | 218.44 mm | 8.6 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
| Stand-off Distance | 1066.800 mm | 42 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Frame | Stiff arms (2) | Tower attachment |
| Packaging quantity | 1 |
| Weight, net | 214.740 kg | 473.42 lb |
