A-100471

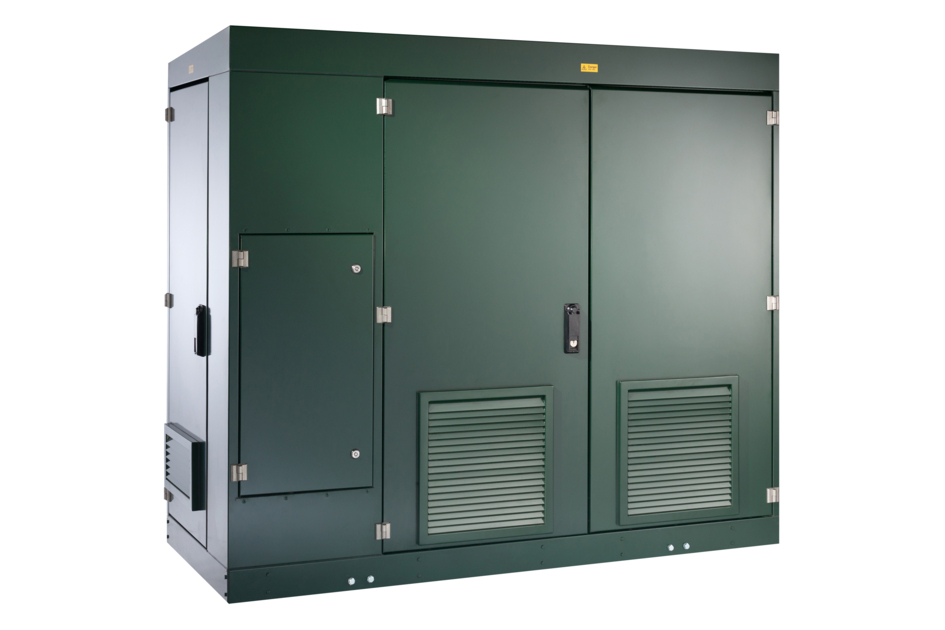

Lancaster NSN/NSN Cabinet (Combiner Space)
Features and benefits
- Sealed to outside environment
- Double wall construction
Specifications
Product classification
| Product Type | Macro cell site enclosure |
| Ordering Note | For UK region only |
General specifications
| Access | Front door | Side door |
| Batteries Supported | 4 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 225 mm fan (2) |
| Door Security | Swing handle with 22mm profile cylinder |
| Doors, quantity | 4 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 18 |
Dimensions
| Height | 1651 mm | 65 in |
| Width | 1905 mm | 75 in |
| Depth | 787.4 mm | 31 in |
Electrical specifications
| Input Power Supply | 50 A |
| ac Distribution Type | 10-way metal enclosure |
| Battery String Current, maximum | 44 A-h @ 48 Vdc |
| dc Distribution Type | 8-way dc panel | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 3000 W |
| Rectifiers, quantity | 3 |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and weights
| Included | -48V DC Power supply unit | Batteries | Brackets | Cooling | Power Distribution |
| Weight, net | 449.964 kg | 992 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Macro cell site enclosure |
| Ordering Note | For UK region only |
General specifications
| Access | Front door | Side door |
| Batteries Supported | 4 |
| Cabinet Type | Integrated cabinet |
| Color | Green | Green (RAL 6009) | Light Gray (RAL 7035) | Others available at additional cost |
| Cooling | 225 mm fan (2) |
| Door Security | Swing handle with 22mm profile cylinder |
| Doors, quantity | 4 |
| Mounting | Plinth | Root |
| Rack Type | EIA 19 in |
| Rack Units | 18 |
Dimensions
| Height | 1651 mm | 65 in |
| Width | 1905 mm | 75 in |
| Depth | 787.4 mm | 31 in |
Electrical specifications
| Input Power Supply | 50 A |
| ac Distribution Type | 10-way metal enclosure |
| Battery String Current, maximum | 44 A-h @ 48 Vdc |
| dc Distribution Type | 8-way dc panel | Power supply unit |
| Generator Connection | No connection |
| Power Phase | Single |
| Rectifier Power | 3000 W |
| Rectifiers, quantity | 3 |
| Voltage | 230 Vac |
Material specifications
| Finish | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Qualification Standards | IEC 60529: 2001 | IEE Wiring Regulations BS 7671 | IP55 |
Packaging and weights
| Included | -48V DC Power supply unit | Batteries | Brackets | Cooling | Power Distribution |
| Weight, net | 449.964 kg | 992 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
