T-200-UW-43-M-I6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

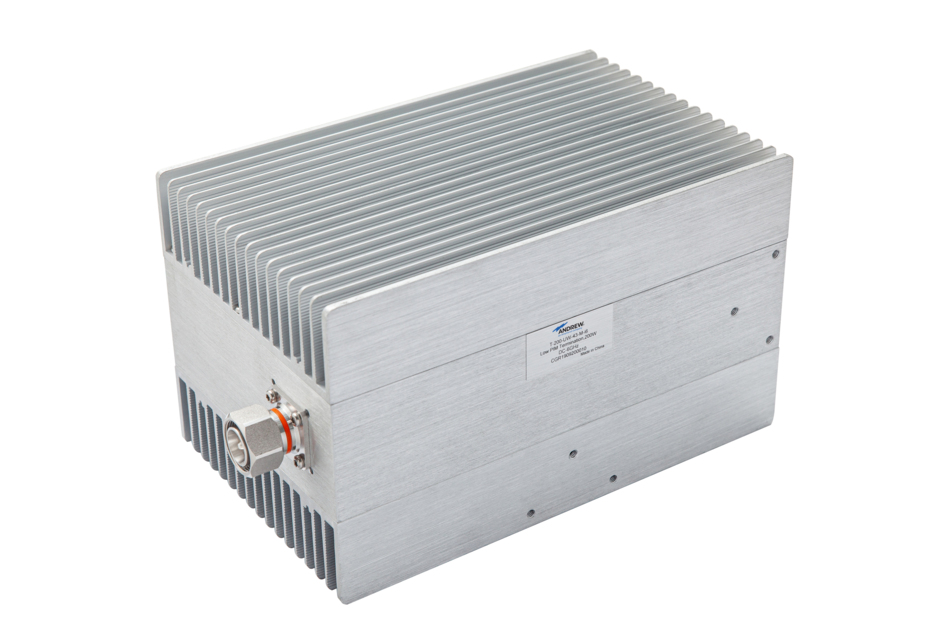

Low PIM Termination 200 W Load, 0-6000MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 126 mm | 4.961 in |
| Width | 130 mm | 5.118 in |
| Length | 232 mm | 9.134 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| VSWR at Frequency Band | 1.2:1 @ 0–555 MHz | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 2700–6000 MHz |

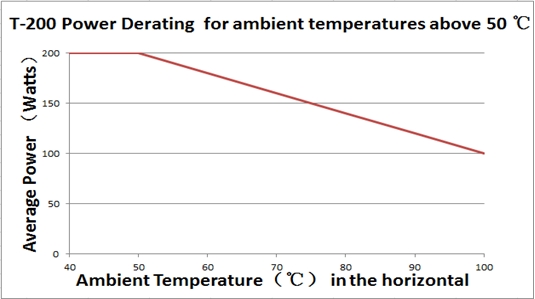

Derating curve
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 200 mm | 7.874 in |
| Width, packed | 200 mm | 7.874 in |
| Length, packed | 400 mm | 15.748 in |
| Weight, gross | 5 kg | 11.023 lb |
| Weight, net | 4.55 kg | 10.031 lb |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Termination Load |
General specifications
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 126 mm | 4.961 in |
| Width | 130 mm | 5.118 in |
| Length | 232 mm | 9.134 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| VSWR at Frequency Band | 1.2:1 @ 0–555 MHz | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 2700–6000 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 200 mm | 7.874 in |
| Width, packed | 200 mm | 7.874 in |
| Length, packed | 400 mm | 15.748 in |
| Weight, gross | 5 kg | 11.023 lb |
| Weight, net | 4.55 kg | 10.031 lb |
