S-4-TCPUSEW-H-43I6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

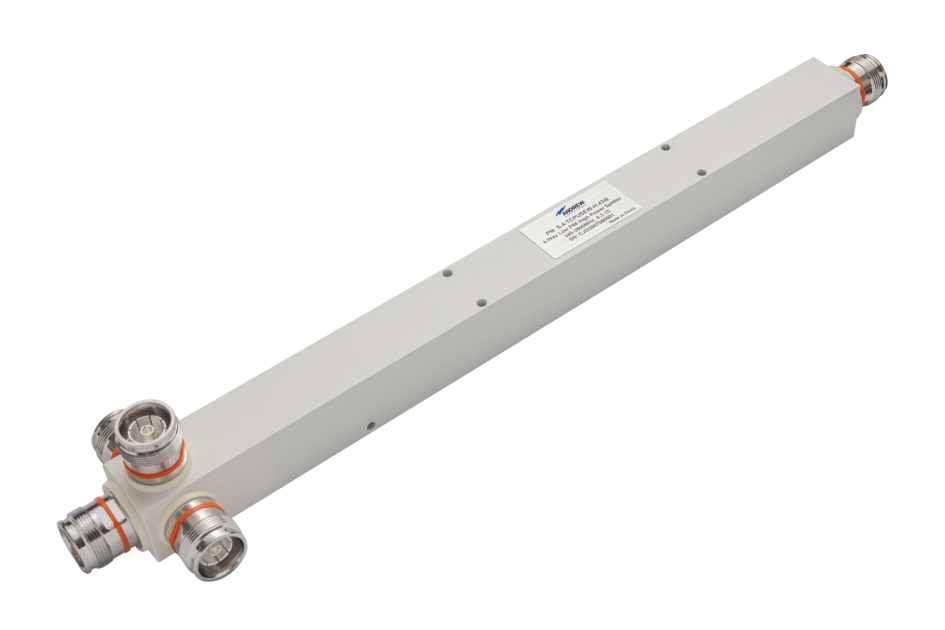

Multiband Four-way Low PIM Reactive High Power Splitter, 340–3800 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power splitter |
General specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm | 0.984 in |
| Width | 66 mm | 2.598 in |
| Length | 352 mm | 13.858 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.4 dB @ 340–2700 MHz | 0.6 dB @ 2700–3800 MHz |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 6 dB |
| VSWR at Frequency Band | 1.25:1 @ 340–3800 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 55 mm | 2.165 in |
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 380 mm | 14.961 in |
| Weight, gross | 0.722 kg | 1.592 lb |
| Weight, net | 0.646 kg | 1.424 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power splitter |
General specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 25 mm | 0.984 in |
| Width | 66 mm | 2.598 in |
| Length | 352 mm | 13.858 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.4 dB @ 340–2700 MHz | 0.6 dB @ 2700–3800 MHz |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 6 dB |
| VSWR at Frequency Band | 1.25:1 @ 340–3800 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 55 mm | 2.165 in |
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 380 mm | 14.961 in |
| Weight, gross | 0.722 kg | 1.592 lb |
| Weight, net | 0.646 kg | 1.424 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
