H-3X3-CPUSE-43-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

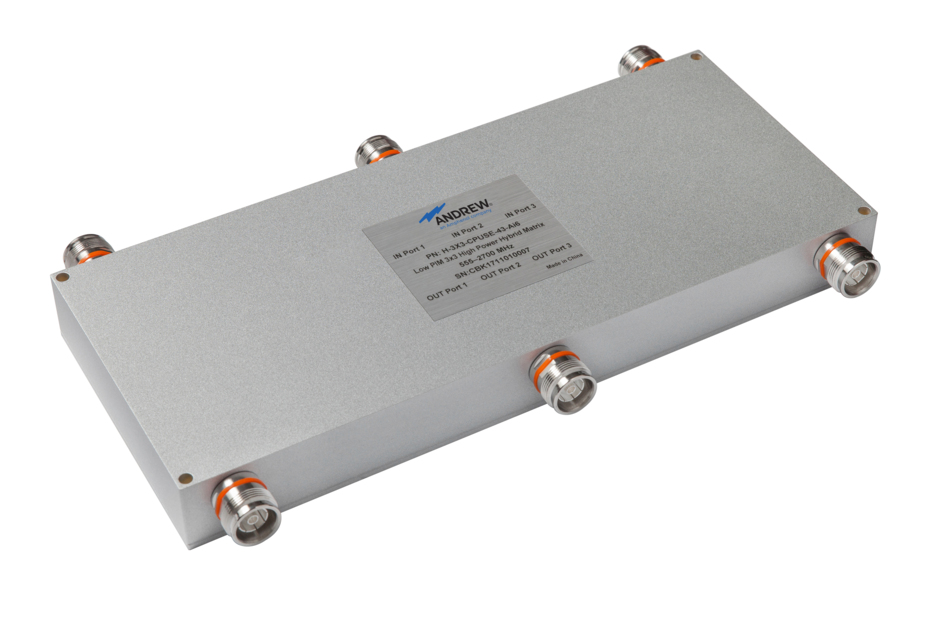

Low PIM 3x3 High Power Hybrid Matrix, 555–2700 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32 mm | 1.26 in |
| Width | 162 mm | 6.378 in |
| Length | 297 mm | 11.693 in |
Electrical specifications
| 3rd Order IMD | -162 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 20.8 dB |
| Average Power, maximum | 100 W |
| Coupling | 5 dB |
| Coupling Tolerance | ±1.1dB @ 698–2700 MHz | ±2.0dB @ 555–698 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 24 dB @ 555–2700 MHz |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 100 W |
| VSWR | 1.2 |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 110 mm | 4.331 in |
| Width, packed | 220 mm | 8.661 in |
| Length, packed | 360 mm | 14.173 in |
| Weight, gross | 2.5 kg | 5.512 lb |
| Weight, net | 1.6 kg | 3.527 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid matrix |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 32 mm | 1.26 in |
| Width | 162 mm | 6.378 in |
| Length | 297 mm | 11.693 in |
Electrical specifications
| 3rd Order IMD | -162 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 20.8 dB |
| Average Power, maximum | 100 W |
| Coupling | 5 dB |
| Coupling Tolerance | ±1.1dB @ 698–2700 MHz | ±2.0dB @ 555–698 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 24 dB @ 555–2700 MHz |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 100 W |
| VSWR | 1.2 |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 110 mm | 4.331 in |
| Width, packed | 220 mm | 8.661 in |
| Length, packed | 360 mm | 14.173 in |
| Weight, gross | 2.5 kg | 5.512 lb |
| Weight, net | 1.6 kg | 3.527 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
