H-3-TCPUSEW-43-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

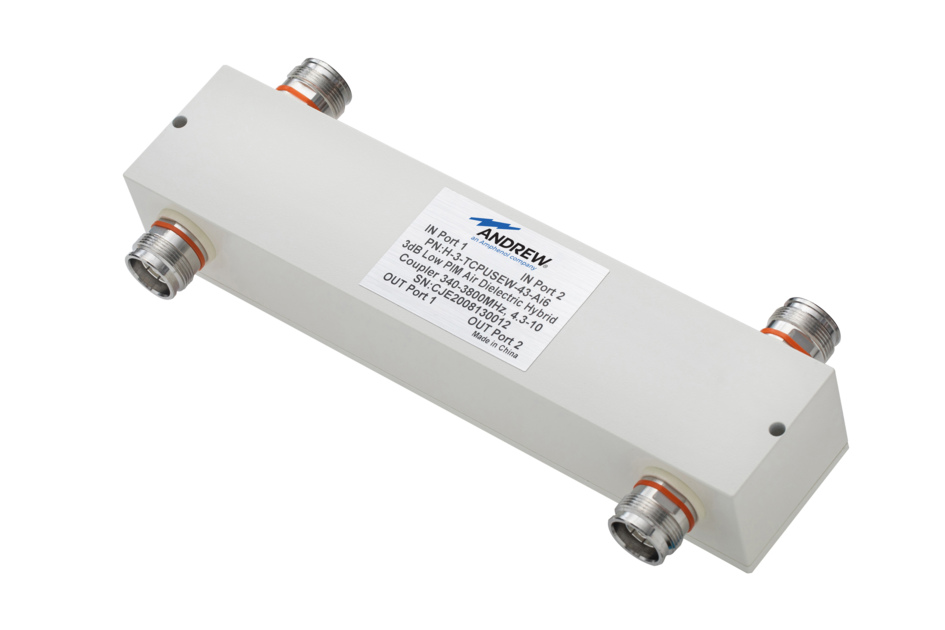

Low PIM Air Dielectric Hybrid Coupler, 340–3800 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid coupler |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 37 mm | 1.457 in |
| Width | 84.4 mm | 3.323 in |
| Length | 220 mm | 8.661 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±1.0dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 22 dB @ 340–3800 MHz |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 200 W |
| VSWR at Frequency Band | 1.2:1 @ 340–2700 MHz | 1.3:1 @ 2700–3800 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 47 mm | 1.850 in |
| Width, packed | 100 mm | 3.937 in |
| Length, packed | 246 mm | 9.685 in |
| Weight, gross | 0.93 kg | 2.050 lb |
| Weight, net | 0.87 kg | 1.918 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid coupler |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 37 mm | 1.457 in |
| Width | 84.4 mm | 3.323 in |
| Length | 220 mm | 8.661 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±1.0dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 22 dB @ 340–3800 MHz |
| Operating Frequency Band | 340 – 3800 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 200 W |
| VSWR at Frequency Band | 1.2:1 @ 340–2700 MHz | 1.3:1 @ 2700–3800 MHz |
Environmental specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Height, packed | 47 mm | 1.850 in |
| Width, packed | 100 mm | 3.937 in |
| Length, packed | 246 mm | 9.685 in |
| Weight, gross | 0.93 kg | 2.050 lb |
| Weight, net | 0.87 kg | 1.918 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
