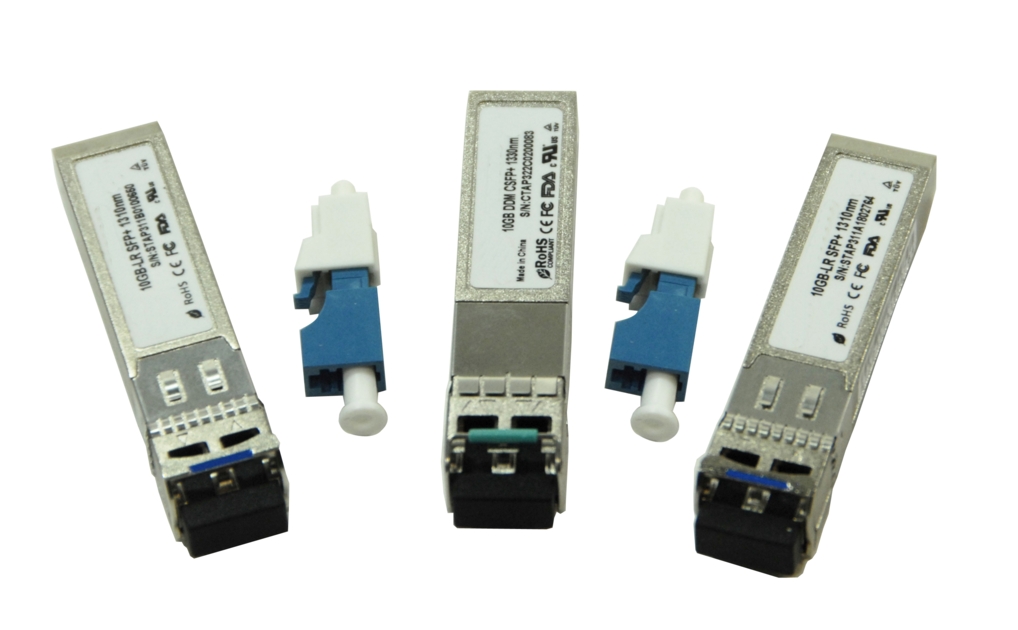

A7846858 | CSFP+ and SFP+ Kit with Optical Attenuators
Compact SFP+ and SFP+-Kit, 10G BASE, Singlemode, up to 20 km, TAA compliant.
Features and benefits
One CSFP+ and two SFP+ plus two optical attenuators in one package. 10G BASE singlemode with up to 20 km
- Up to 10.3125Gb/s data links
- Duplex LC connector
- Hot-pluggable SFP footprint
- Uncooled DFB laser transmitter
- RoHS compliant and Lead Free
- Up to 20Km on 9/125um SMF
- Metal enclosure for lower EMI
- Single +3.3V power supply
- Compliant with CSFP MSA 2.0 (Option 2)
- Commercial and industrial operating temperature optional
- Trade Agreements Act (TAA) compliant
Specifications
Product classification
| Product Type | Optical module |
| Product Series | CSFP | SFP+ |
General specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
Optical specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 3 dBm |
| Average Optical Output Power, minimum | -2 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | –13 dBm |
| Receiver Overload | + 0.5 dBm |
Environmental specifications
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
Packaging and weights
| Width, packed | 120 mm | 4.724 in |
| Depth, packed | 250 mm | 9.843 in |
| Packaging quantity | 1 |
| Packaging Type | Bag |
| Weight, gross | 0.12 kg | 0.265 lb |
| Weight, net | 0.1 kg | 0.220 lb |
Product classification
| Product Type | Optical module |
| Product Series | CSFP | SFP+ |
General specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
Optical specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 3 dBm |
| Average Optical Output Power, minimum | -2 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | –13 dBm |
| Receiver Overload | + 0.5 dBm |
Environmental specifications
| Operating Temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
Packaging and weights
| Width, packed | 120 mm | 4.724 in |
| Depth, packed | 250 mm | 9.843 in |
| Packaging quantity | 1 |
| Packaging Type | Bag |
| Weight, gross | 0.12 kg | 0.265 lb |
| Weight, net | 0.1 kg | 0.220 lb |
