7715018-01 | i-POI 4 x 1:4

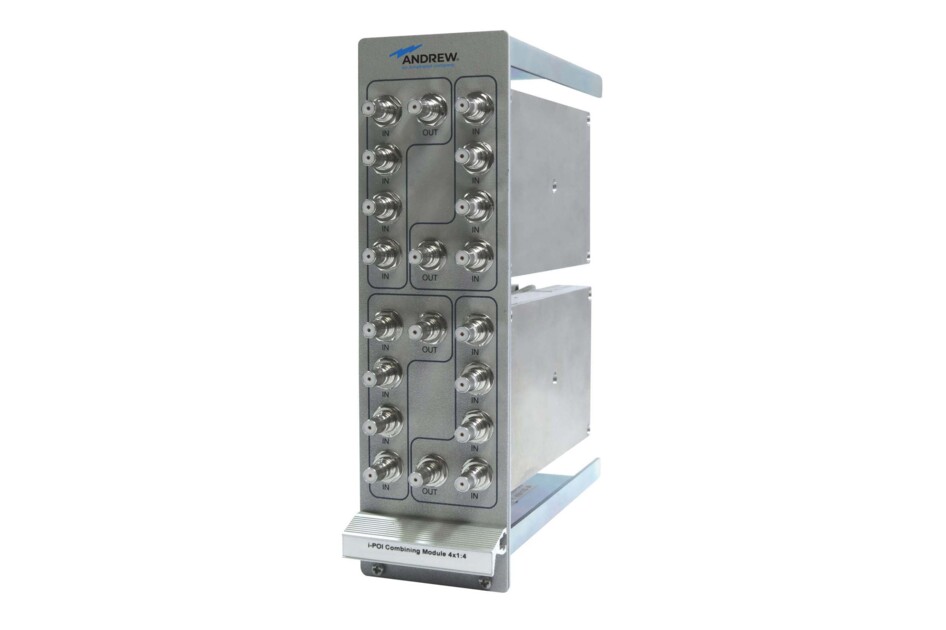

ION® Passive Intelligent Point of Interface 4 x 1:4 Combining Module
Specifications
Product classification
| Product Type | Combiner |
| Product Brand | i-POI™ |
General specifications
| DAS Interface Location, Rx from DAS | Front |
| DAS Interface Location, Tx to DAS | Front |
| Input Connector Interface | QMA Female |
| Input Connector, quantity | 16 |
| Note | One 4U 19” POI subrack can hold up to 8 passive combining modules |
| Output Connector Interface | QMA Female |
| Output Connector, quantity | 4 |
Dimensions
| Height | 180 mm | 7.087 in |
| Width | 50 mm | 1.969 in |
| Depth | 137 mm | 5.394 in |
Electrical specifications
| Insertion Loss, maximum | 7.2 dB |
| Return Loss, minimum | 15 dB |
| Composite Input Power per Port at Single Port Operation, maximum | 33 dBm |
| Composite Input Power per Port, nominal | 27 dBm |
| Flatness, maximum | 0.7 dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 15 dB @ 698–960 MHz | 18 dB @ 960–2700 MHz |
| Operating Frequency Band | 698 – 2700 MHz |
| RF Ports per Section, quantity | 5 |
| Sections, quantity | 4 |
Environmental specifications
| Operating Temperature | -5 °C to +65 °C (+23 °F to +149 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP20 |
| Mean Time Between Failures (MTBF) at Temperature | 50,000 h @ 25 °C |
Packaging and weights
| Height, packed | 125 mm | 4.921 in |
| Width, packed | 225 mm | 8.858 in |
| Depth, packed | 365 mm | 14.370 in |
| Weight, net | 1.2 kg | 2.646 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Combiner |
| Product Brand | i-POI™ |
General specifications
| DAS Interface Location, Rx from DAS | Front |
| DAS Interface Location, Tx to DAS | Front |
| Input Connector Interface | QMA Female |
| Input Connector, quantity | 16 |
| Note | One 4U 19” POI subrack can hold up to 8 passive combining modules |
| Output Connector Interface | QMA Female |
| Output Connector, quantity | 4 |
Dimensions
| Height | 180 mm | 7.087 in |
| Width | 50 mm | 1.969 in |
| Depth | 137 mm | 5.394 in |
Electrical specifications
| Insertion Loss, maximum | 7.2 dB |
| Return Loss, minimum | 15 dB |
| Composite Input Power per Port at Single Port Operation, maximum | 33 dBm |
| Composite Input Power per Port, nominal | 27 dBm |
| Flatness, maximum | 0.7 dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 15 dB @ 698–960 MHz | 18 dB @ 960–2700 MHz |
| Operating Frequency Band | 698 – 2700 MHz |
| RF Ports per Section, quantity | 5 |
| Sections, quantity | 4 |
Environmental specifications
| Operating Temperature | -5 °C to +65 °C (+23 °F to +149 °F) |
| Storage Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP20 |
| Mean Time Between Failures (MTBF) at Temperature | 50,000 h @ 25 °C |
Packaging and weights
| Height, packed | 125 mm | 4.921 in |
| Width, packed | 225 mm | 8.858 in |
| Depth, packed | 365 mm | 14.370 in |
| Weight, net | 1.2 kg | 2.646 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
