7850475

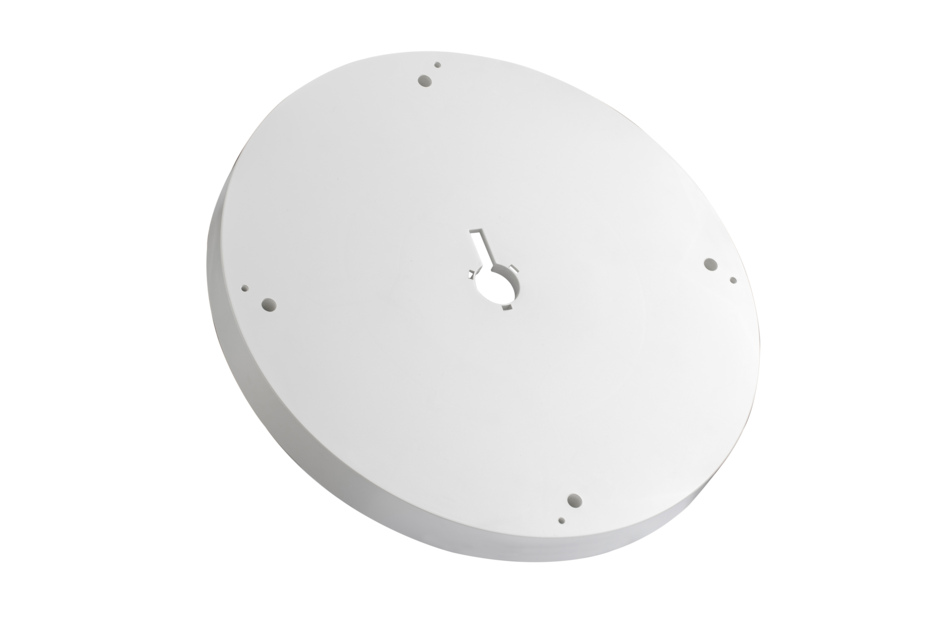

Omni Absorber ground plane to improve VSWR on metal ceilings (This product was designed to match the CMAX-OMF7-43-UWI53 antenna to metal ceiling)

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Cover

General specifications

Color White (RAL 9016)

Dimensions

Height 31.5 mm | 1.240 in
Outer Diameter 363 mm | 14.291 in

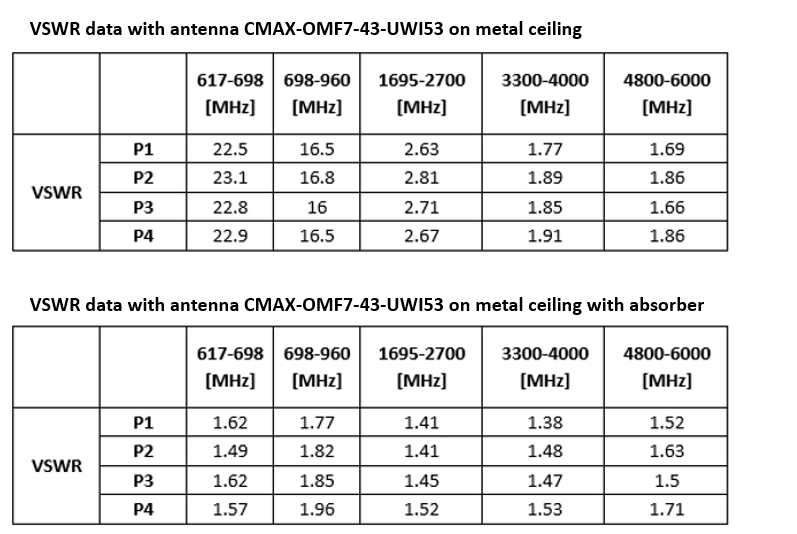

Electrical performance

Click on image to enlarge.

Material specifications

Material Type ASA | PC

Environmental specifications

UV Resistance UV stabilized

Packaging and weights

Height, packed 40 mm | 1.575 in
Width, packed 375 mm | 14.764 in
Length, packed 375 mm | 14.764 in
Packaging quantity 1
Weight, gross 850 g | 1.874 lb
Weight, net 700 g | 1.543 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Cover

General specifications

Color White (RAL 9016)

Dimensions

Height 31.5 mm | 1.240 in
Outer Diameter 363 mm | 14.291 in

Material specifications

Material Type ASA | PC

Environmental specifications

UV Resistance UV stabilized

Packaging and weights

Height, packed 40 mm | 1.575 in
Width, packed 375 mm | 14.764 in
Length, packed 375 mm | 14.764 in
Packaging quantity 1
Weight, gross 850 g | 1.874 lb
Weight, net 700 g | 1.543 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
